Chapter 3: Understanding Quadrilaterals

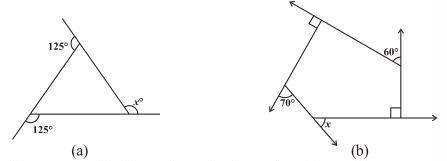

a)

125° + m = 180° ⇒ m = 180° – 125° = 55° (Linear pair)

125° + n = 180° ⇒ n = 180° – 125° = 55° (Linear pair)

x = m + n (The exterior angle of a triangle is equal to the sum of the two opposite interior angles)

⇒ x = 55° + 55° = 110°

b)

Two interior angles are right angles = 90°

70° + m = 180° ⇒ m = 180° – 70° = 110° (Linear pair)

60° + n = 180° ⇒ n = 180° – 60° = 120° (Linear pair) The figure is having five sides and is a pentagon.

Thus, sum of the angles of a pentagon = 540°

⇒ 90° + 90° + 110° + 120° + y = 540°

⇒ 410° + y = 540° ⇒ y = 540° – 410° = 130°

x + y = 180° (Linear pair)

⇒ x + 130° = 180°

⇒ x = 180° – 130° = 50°

Sum of the angles of a regular polygon having side n = (n-2)×180°

(i) Sum of the angles of a regular polygon having 9 sides = (9-2)×180°= 7×180° = 1260°

Each interior angle=1260/9 = 140°

Each exterior angle = 180° – 140° = 40°

Or,

Each exterior angle = Sum of exterior angles/Number of angles = 360/9 = 40°

(ii) Sum of angles of a regular polygon having side 15 = (15-2)×180°

= 13×180° = 2340°

Each interior angle = 2340/15 = 156°

Each exterior angle = 180° – 156° = 24°

Or,

Each exterior angle = sum of exterior angles/Number of angles = 360/15 = 24°

Each exterior angle = sum of exterior angles/Number of angles

24°= 360/ Number of sides

⇒ Number of sides = 360/24 = 15

Thus, the regular polygon has 15 sides.

Interior angle = 165°

Exterior angle = 180° – 165° = 15°

Number of sides = sum of exterior angles/exterior angles

⇒ Number of sides = 360/15 = 24

Thus, the regular polygon has 24 sides.

a) Exterior angle = 22°

Number of sides = sum of exterior angles/ exterior angle

⇒ Number of sides = 360/22 = 16.36

No, we can’t have a regular polygon with each exterior angle as 22° as it is not a divisor of 360.

b) Interior angle = 22°

Exterior angle = 180° – 22°= 158°

No, we can’t have a regular polygon with each exterior angle as 158° as it is not a divisor of 360.

a) An equilateral triangle is the regular polygon (with 3 sides) having the least possible minimum interior angle because a regular polygon can be constructed with minimum 3 sides.

Since the sum of interior angles of a triangle = 180°

Each interior angle = 180/3 = 60°

b) An equilateral triangle is the regular polygon (with 3 sides) having the maximum exterior angle because the regular polygon with the least number of sides has the maximum exterior angle possible. Maximum exterior possible = 180 – 60° = 120°
