Practice each question, then open the answer or worked solution.

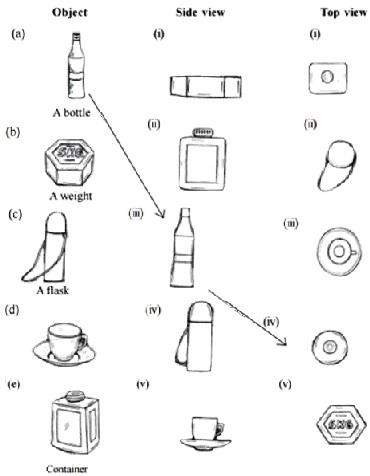

For each of the given solids, two views are given. Match for each solid the corresponding top and front views. The first one is done for you.
(a) (iii) (iv)
(b) (i) (v)
(c) (iv) (ii)
(d) (v) (iii)
(e) (ii) (i)
For each of the given solids, the three views are given. Identify for each solid the corresponding top, front and side views.
(a) (i) Front (ii) Side (iii) Top view
(b) (i) Side (ii) Front (iii) Top view
(c) (i) Front (ii) Side (iii) Top view
(d) (i) Front (ii) Side (iii) Top view

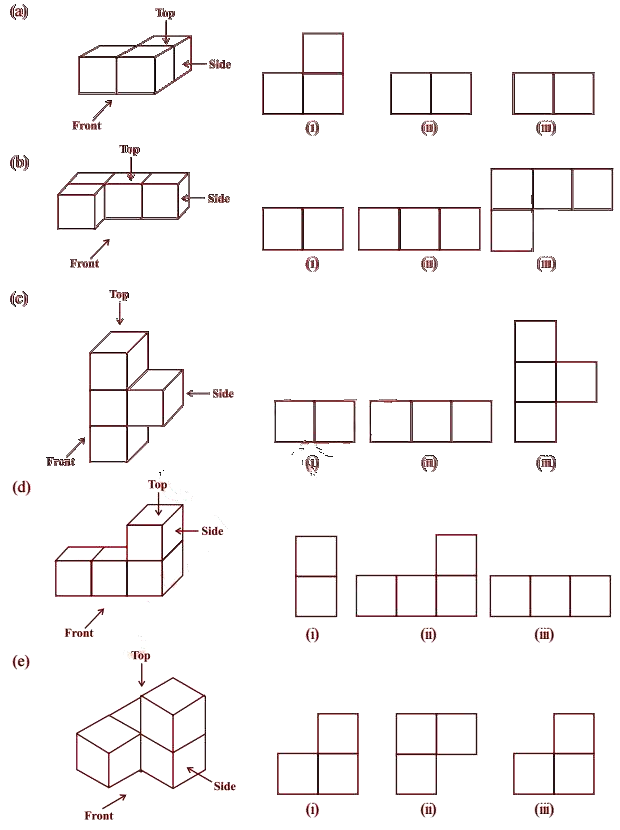

For each given solid, identify the top view, front view and side view.
(a) (i) Top view (ii) Front view (iii) Side view
(b) (i) Side view (ii) Front view (iii) Top view
(c) (i) Top view (ii) Side view (iii) Front view
(d) (i) Side view (ii) Front View (iii) Top view
(e) (i) Front view (ii) Top view (iii) Side view

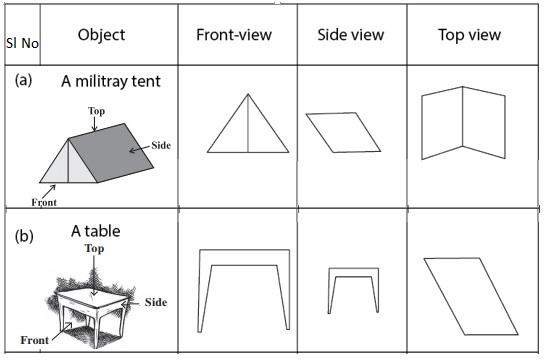

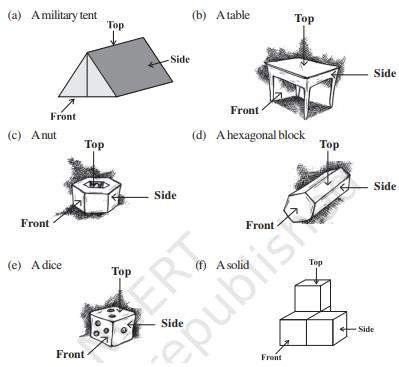

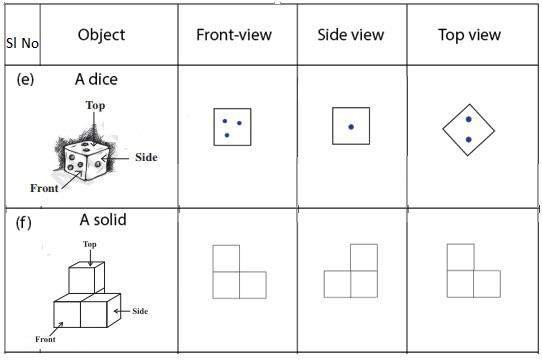

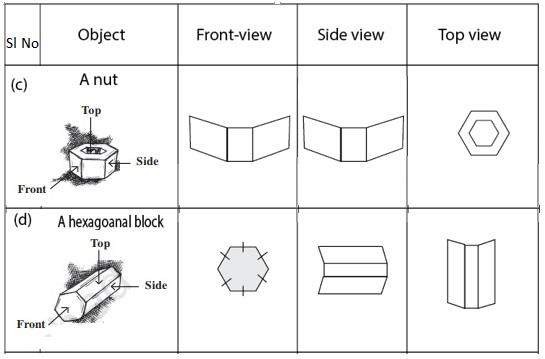

Draw the front view, side view and top view of the given objects:
