Chapter 8: Quadrilaterals

Q1Written answer

One angle of a quadrilateral is of 108º and the remaining three angles are equal. Find each of the three equal angles.

Show solutionHide solution

Worked solution

Let the remaining three equal angles be x.

We know,

Sum of all interior angles of a quadrilateral is = 360^o

108^o + x + x + x = 360^o

108^o + 3x = 360^o

3x = 360^o – 108^o

3x = 252^o

x = 252/3

x = 84^o

Each of three equal angles, x = 84^o.

Q2Written answer

ABCD is a trapezium in which AB || DC and ∠A = ∠B = 45º. Find angles C and D of the trapezium.

Show solutionHide solution

Worked solution

According to the question,

ABCD is a trapezium

∠A = ∠B = 45º

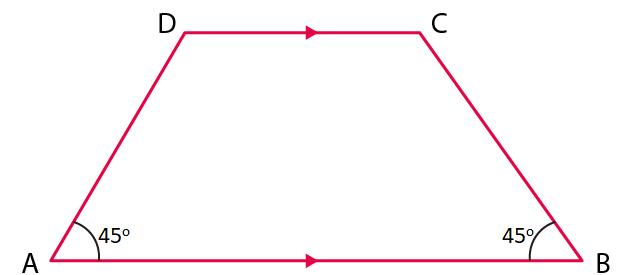

NCERT Exemplar Solutions Class 9 Maths Chapter 8 Exercise 8.3-1

We know that,

Angles opposite to each other in quadrilateral are supplementary.

Then, we have,

∠A + ∠C = 180º

45^o + ∠C = 180º

∠C = 180^o – 45^o

∠C = 135^o

Similarly,

We have,

∠B + ∠D = 180º

45^o + ∠D = 180º

∠D = 180^o – 45^o

∠D = 135^o

Q3Written answer

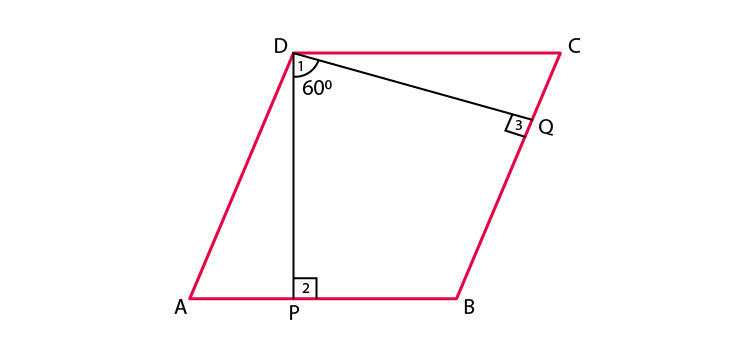

The angle between two altitudes of a parallelogram through the vertex of an obtuse angle of the parallelogram is 60º. Find the angles of the parallelogram.

Show solutionHide solution

Worked solution

According to the question,

ABCD is parallelogram,

DP ⊥ AB

DQ ⊥ BC.

∠PDQ = 60^o

In quad. DPBQ,

Using angle sum property of a quadrilateral,

We have,

∠PDQ + ∠Q + ∠P + ∠B = 360^o

60^o + 90^o + 90^o + ∠B = 360^o

240^o + ∠B = 360^o

∠B = 360^o – 240^o

∠B = 120^o

Since, opposite angles in parallelogram are equal,

We have,

∠B = ∠D = 120^o

Since, opposite sides are parallel in parallelogram,

We have,

AB||CD

Also, since sum of adjacent interior angles is 180^o,

We have,

∠B + ∠C = 180^o

120^o + ∠C = 180^o

∠C = 180^o – 120^o

∠C = 60^o

Since, opposite angles in parallelogram are equal,

We have,

∠C = ∠A = 60^o

Q4Written answer

ABCD is a rhombus in which altitude from D to side AB bisects AB. Find the angles of the rhombus.

Show solutionHide solution

Worked solution

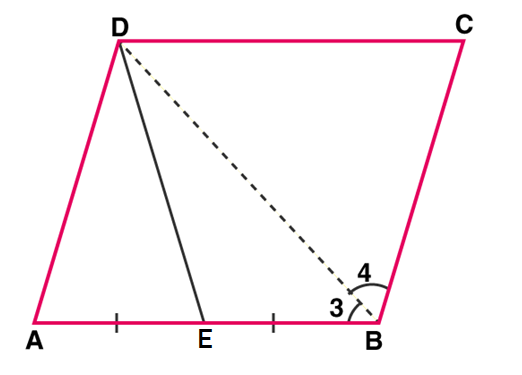

NCERT Exemplar Solutions Class 9 Maths Chapter 8 Exercise 8.3-3

According to the question,

We have,

ABCD is a rhombus.

DE is the altitude on AB then AE = EB.

In ΔAED and ΔBED,

We have,

DE = DE (common line)

∠AED = ∠BED (right angle)

AE = EB (DE is an altitude)

∴ ΔAED ≅ ΔBED by SAS property.

∴ AD = BD (by C.P.C.T)

But AD = AB (sides of rhombus are equal)

⇒ AD = AB = BD

∴ ABD is an equilateral triangle.

∴ ∠A = 60^o

Since, opposite angles of rhombus are equal, we get,

⇒ ∠A = ∠C = 60^o

We also know that,

Sum of adjacent angles of a rhombus = supplementary.

So,

∠ABC + ∠BCD = 180^o

∠ABC + 60^o = 180^o

∠ABC = 180^o – 60^o = 120^o

Since, opposite angles of rhombus are equal, we get,

∠ABC = ∠ADC = 120^o

Hence, Angles of rhombus are:

∠A = 60^o, ∠C = 60^o, ∠B = 120^o, ∠D = 120^o

Q5Written answer

E and F are points on diagonal AC of a parallelogram ABCD such that AE = CF. Show that BFDE is a parallelogram.

Show solutionHide solution

Worked solution

Construction:

Join BD, meeting AC at O.

According to the question,

Since diagonals of a parallelogram bisect each other,

We get,

OA = OC and OD = OB.

And,

OA = OC and AE = CF,

OA – AE = OC – CF

OE = OF

So, BFDE is a quadrilateral whose diagonals bisect each other.

Hence, BFDE is a parallelogram.
