Chapter 8: Gravitation

The earth is an approximate sphere. If the interior contained matter which is not of the same density everywhere, then on the surface of the earth, the acceleration due to gravity

As observed from earth, the sun appears to move in an approximately circular orbit. For the motion of another planet like mercury as observed from earth, this would

a) be similarly true

b) not be true because the force between earth and mercury is not inverse square law

c) not be true because the major gravitational force on mercury is due to the sun

d) not be true because mercury is influenced by forces other than gravitational forces

Different points in the earth are at slightly different distances from the sun and hence experience different forces due to gravitation. For a rigid body, we know that if various forces act at various points in it, the resultant motion is as if a net force acts on the cm, causing translation and a net torque at the cm causing translation and a net torque at the cm causing rotation around an axis through the cm. For the earth-sun system

a) the torque is zero

b) the torque causes the earth to spin

c) the rigid body result is not applicable since the earth is not even approximately a rigid body

d) the torque causes the earth to move around the sun

Satellites orbiting the earth have a finite life, and sometimes debris of satellites fall to the earth. This is because

a) the solar cells and batteries in satellites run out

b) the laws of gravitation predict a trajectory spiralling inwards

c) of viscous forces causing the speed of the satellite and hence height to gradually decrease

d) of collisions with other satellites

Both the earth and moon are subject to the gravitational force of the sun. as observed from the sun, the orbit of the moon

a) will be elliptical

b) will not be strictly elliptical because the total gravitational force on it is not central

c) is not elliptical but will necessarily be a closed curve

d) deviates considerably from being elliptical due to the influence of planets other than earth

In our solar system, the interplanetary region has chunks of matter called asteroids. They

a) will not move around the sun since they have very small masses compared to the sun

b) will move in an irregular way because of their small masses and will drift away from outer space

c) will move around the sun in closed orbits but not obey Kepler’s laws

d) will move in orbits like planets and obey Kepler’s laws

Choose the wrong option.

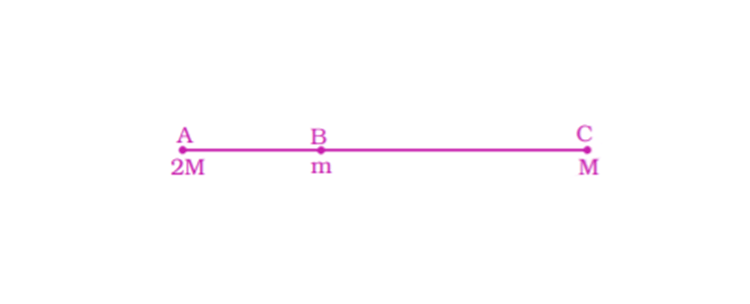

Particles of masses 2M, m and M are respectively at points A, B, and C with AB = 1/2 (BC). M is much smaller than M, and at time t = 0, they are all at rest. At subsequent times before any collision takes place

a) m will remain at rest

b) m will move towards M

c) m will move towards 2M

d) m will have oscillatory motion

Which of the following options is correct?

If the law of gravitation, instead of being inverse-square law, becomes an inverse-cube-law

a) planets will not have elliptic orbits

b) circular orbits of planets are not possible

c) projectile motion of a stone thrown by hand on the surface of the earth will be approximately parabolic

d) there will be no gravitational force inside a spherical shell of uniform density
