Chapter 15: Introduction to Graphs

Q1Written answer

Plot the following points on a graph sheet. Verify if they lie on a line

(a) A(4,0), B(4, 2),C(4,6), D(4, 2.5)

(b) P(1, 1), Q(2, 2), R(3,3), S(4, 4)

(c) K(2, 3), L(5, 3), M(5,5), N(2, 5)

Show solutionHide solution

Worked solution

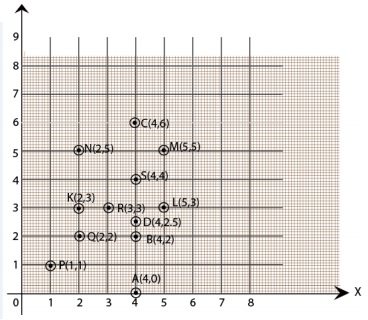

Plot all the points on the graph.

Ncert solution class 8 chapter 15-11

(a) All points, A, B, C and D, lie on a vertical line.

(b) P,Q, R and S points also make a line. It verifies that these points lie on a line.

(c) Points K, L, M and N. These points do not lie in a straight line.

Q2Written answer

Draw the line passing through (2,3)and(3,2). Find the coordinates of the points at which this line meets the x-axis and y-axis.

Show solutionHide solution

Worked solution

Graph for the line passes through points (2, 3) and (3, 2) is

Ncert solution class 8 chapter 15-12

The coordinates of the points at which this line meets the x-axis at (5, 0) and Y axis at (0,5).

Q3Written answer

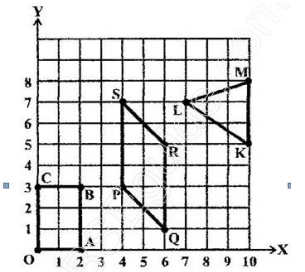

Write the coordinates of the vertices of each of these adjoining figures.

Ncert solution class 8 chapter 15-13

Show solutionHide solution

Worked solution

We can observe three figures named as, OABC, PQRS and LMK.

Vertices of figure OABC

O (0, 0), A (2, 0), B (2, 3) and C (0, 3)

Vertices of figure PQRS

P (4, 3), Q (6, 1), R (6, 5) and S (4, 7)

Vertices of figure LMK

L (7, 7), M(10, 8) and K(10,5)

Q4Written answer

State whether True or False. Correct those that are False.

(i) A point whose x-coordinate is zero and y-coordinate is non-zero will lie on the y-axis.

(ii) A point whose y-coordinate is zero and x-coordinate is 5 will lie on the y-axis.

(iii) The coordinates of the origin are (0, 0).

Show solutionHide solution

Worked solution

i) True.

ii) False; it will lie on the x-axis.

(iii) True.
