All DC Machines previous year questions

Practice every matching question in batches of 20, with every available option.

1
2007 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2007

The dc motor, which can provide zero speed regulation at full load without any controller, is

Open complete paper
2
2007 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2007
The electromagnetic torque \(T_e\) of a drive, and its connected load torque \(T_L\) are as shown below. Out of the operating points A, B, C and D, the stable ones are
Open complete paper
3
2008 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2008

In a stepper motor, the detent torque means

Open complete paper
4
2008 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2008
Neglecting all losses of both the machines, the dc generator power output and the current through resistance (Rext) will respectively be
Open complete paper
5
2008 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2008
The net voltage across the armature resistance at the time of plugging will be
Open complete paper
6
2008 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2008

The external resistance to be added in the armature circuit to limit the armature current to 125% of its rated value is

Open complete paper
7
2009 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2009
Figure shows the extended view of a 2 pole dc machine with 10 armature conductors. Normal brush positions are shown by A and B, placed at the interpolar axis. If the brushes are now shifted, in the direction of rotation, to A' and B' as shown, the voltage waveform VA'B' will resemble
Open complete paper
8
2010 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2010
A separately excited dc machine is coupled to a 50 Hz, three-phase, 4-pole induction machine as shown in the figure. The dc machine is energized first and the machines rotate at 1600 rpm. Subsequently the induction machine is also connected to a 50 Hz, three-phase source. the phase sequence being consistent with the direction of rotation. In steady state,
Open complete paper
9
2010 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2010
A separately excited DC motor runs at 1500 rpm under no-load with 200 V applied to the armature. The field voltage is maintained at its rated value. The speed of the motor, when it delivers a torque of 5 Nm, is 1400 rpm as shown in the figure. The rotational losses and armature reaction are neglected. The armature resistance of the motor is.

Question diagram

Open complete paper
10
2010 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2010
For the motor to deliver a torque of 2.5 Nm at 1400 rpm, the armature voltage to be applied is
Open complete paper
11
2011 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2011

A 4-point starter is used to start and control the speed of a

Open complete paper
12
2011 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2011
A 220 V, DC shunt motor is operating at a speed of 1440 rpm. The armature resistance is 1.0 Ω and armature current is 10 A. If the excitation of the machine is reduced by 10 %, the extra resistance to be put in the armature circuit to maintain the same speed and torque will be
Open complete paper
13
2012 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2012

A 220 V, 15 kW, 1000 rpm shunt motor with armature resistance of 0.25 Ω, has a rated line current of 68 A and a rated field current of 2.2 A. The change in field flux required to obtain a speed of 1600 rpm while drawing a line current of 52.8 A and a field current of 1.8 A is

Open complete paper
14
2013 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2013 [Session 3]
The separately excited dc motor in the figure below has a rated armature current of 20 A and a rated armature voltage of 150 V. An ideal chopper switching at 5 kHz is used to control the armature voltage. If \(L_a=0.1\) mH, \(R_a=1\ \Omega\), neglecting armature reaction, the duty ratio of the chopper to obtain 50% of the rated torque at the rated speed and the rated field current is

Question diagram

Open complete paper
15
2014 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2014 [Session 1]
A 15 kW, 230 V dc shunt motor has armature circuit resistance of 0.4 Ω and field circuit resistance of 230 Ω. At no load and rated voltage, the motor runs at 1400 rpm and the line current drawn by the motor is 5 A. At full load, the motor draws a line current of 70 A. Neglect armature reaction. The full load speed of the motor in rpm is ______.
Open complete paper
16
2014 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2014 [Session 2]
A 250 V dc shunt machine has armature circuit resistance of 0.6 \(\Omega\) and field circuit resistance of 125 \(\Omega\). The machine is connected to 250 V supply mains. The motor is operated as a generator and then as a motor separately. The line current of the machine in both the cases is 50 A. The ratio of the speed as a generator to the speed as a motor is ________.
Open complete paper
17
2014 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2014 [Session 3]

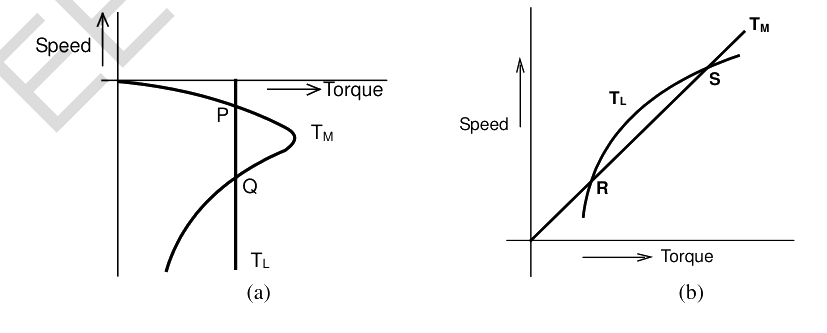

The torque-speed characteristics of motor (\( T_M \)) and load (\( T_L \)) for two cases are shown in the figures (a) and (b). The load torque is equal to motor torque at points P, Q, R and S

The stable operating points are

Question diagram

Open complete paper
18
2016 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2016 [Session 1]
A 4-pole, lap-connected, separately excited dc motor is drawing a steady current of 40 A while running at 600 rpm. A good approximation for the waveshape of the current in an armature conductor of the motor is given by
Open complete paper
19
2016 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2016 [Session 1]
A DC shunt generator delivers 45 A at a terminal voltage of 220 V. The armature and the shunt field resistances are 0.01 Ω and 44 Ω respectively. The stray losses are 375 W. The percentage efficiency of the DC generator is ________.
Open complete paper
20
2016 · Electrical Engineering · Electrical Machines · DC Machines
Electrical Engineering (EE) 2016 [Session 2]
A rotating conductor of 1 m length is placed in a radially outward (about the z-axis) magnetic flux density (B) of 1 Tesla as shown in figure below. Conductor is parallel to and at 1 m distance from the z-axis. The speed of the conductor in r.p.m. required to induce a voltage of 1 V across it, should be __________.

Question diagram

Open complete paper
