Exam Details

Electrical Engineering (EE) 2008

Review the key details, then start the test when you are ready. You can also open the full package to see related papers.

Questions 85
Duration 180 mins
Package Electrical Engineering (EE) - Previous Year Papers

Paper pattern & analysis

Filter this paper by subject, topic or subtopic. Every graph updates from the selected questions.

Explore previous papers
Showing all 85 questions in this paper.

Subject distribution

No subject classification is available.

Topic distribution

No topic classification is available.

Subtopic distribution

No subtopic classification is available.

Difficulty distribution

Easy 85 100%

Question type distribution

Multiple Choices 85 100%

Instructions

Electrical Engineering (EE) 2008 – Instructions
  • Total number of questions: 85
  • 20 questions carry one mark each
  • 65 questions carry two marks each
  • Negative marking: 1/4 of the marks allotted to the question
  • Use of calculator is allowed
  • This is a proctored examination
  • All other browser applications will be automatically closed
  • After three warnings, the examination window will close automatically

Syllabus

Full Syllabus

Sample questions from this paper

Questions are selected across the paper subjects wherever the paper contains that variety.

1
2008 · Unclassified
Electrical Engineering (EE) 2008
Q.1 – Q.20 carry one mark each.

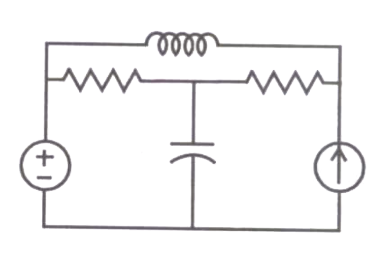

The number of chords in the graph of the given circuit will be

Question diagram

A
3
B
4
C
5
D
6
2
2008 · Unclassified
Electrical Engineering (EE) 2008

The Thevenin's equivalent of a circuit operating at ω = 5 rad/s, has Vth = 3.7∠−15.9° V and Zth = 2.38 − j0.667 Ω. At this frequency, the minimal realization of the Thevenin's impedance will have a

A
resistor and a capacitor and an inductor
B
resistor and a capacitor
C
resistor and an inductor
D
capacitor and an inductor
3
2008 · Unclassified
Electrical Engineering (EE) 2008

A signal e−t sin(ωt) is the input to a real Linear Time Invariant system. Given K and φ are constants, the output of the system will be of the form Ke−t sin(νt + φ) where

A
β need not be equal to α but ν equal to ω
B
ν need not be equal to ω but β equal to α
C
β equal to α and ν equal to ω
D
β need not be equal to α and ν need not be equal to ω
4
2008 · Unclassified
Electrical Engineering (EE) 2008

X is a uniformly distributed random variable that takes values between 0 and 1. The value of Ex3 will be

A
0
B
1/8
C
1/4
D
1/2
5
2008 · Unclassified
Electrical Engineering (EE) 2008

The characteristic equation of a (3×3) matrix P is defined as α(λ) = |λI − P| = λ3 + 2λ2 + 2λ + 1 = 0. If I denotes identity matrix, then the inverse of matrix P will be

A
(P² + P + 2I)
B
(P² + P + I)
C
(−P² + P + I)
D
(−P² + P + 2I)
6
2008 · Unclassified
Electrical Engineering (EE) 2008

If the rank of a (5×6) matrix Q is 4, then which one of the following statements is correct?

A
Q will have four linearly independent rows and four linearly independent columns
B
Q will have four linearly independent rows and five linearly independent columns
C
QᵀQ will be invertible
D
QQᵀ will be invertible
