Exam Details

Electrical Engineering (EE) 2009

Review the key details, then start the test when you are ready. You can also open the full package to see related papers.

Questions 60
Duration 180 mins
Package Electrical Engineering (EE) - Previous Year Papers

Paper pattern & analysis

Filter this paper by subject, topic or subtopic. Every graph updates from the selected questions.

Explore previous papers
Showing all 60 questions in this paper.

Subject distribution

No subject classification is available.

Topic distribution

No topic classification is available.

Subtopic distribution

No subtopic classification is available.

Difficulty distribution

Easy 60 100%

Question type distribution

Multiple Choices 60 100%

Instructions

Electrical Engineering (EE) 2009 – Instructions
  • Total number of questions: 60
  • 20 questions carry one mark each
  • 40 questions carry two marks each
  • Negative marking: 1/3 of the marks allotted to the question
  • Use of calculator is allowed
  • This is a proctored examination
  • All other browser applications will be automatically closed
  • After three warnings, the examination window will close automatically

Syllabus

Full Syllabus

Sample questions from this paper

Questions are selected across the paper subjects wherever the paper contains that variety.

1
2009 · Unclassified
Electrical Engineering (EE) 2009
Q.1 – Q.20 carry one mark each.

The pressure coil of a dynamometer type wattmeter is

A
highly inductive
B
highly resistive
C
purely resistive
D
purely inductive
2
2009 · Unclassified
Electrical Engineering (EE) 2009

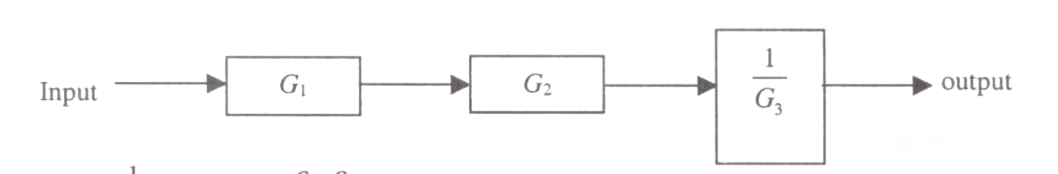

The measurement system shown in the figure uses three sub-systems in cascade whose gains are specified as G1, G2, and 1/G3. The relative small errors associated with each respective subsystem G1, G2, and G3 are ε1, ε2, and ε3. The error associated with the output is:

Question diagram

A
ε₁ + ε₂ + 1/ε₃
B
ε₁ + ε₂/ε₃
C
ε₁ + ε₂ − ε₃
D
ε₁ + ε₂ + ε₃
3
2009 · Unclassified
Electrical Engineering (EE) 2009

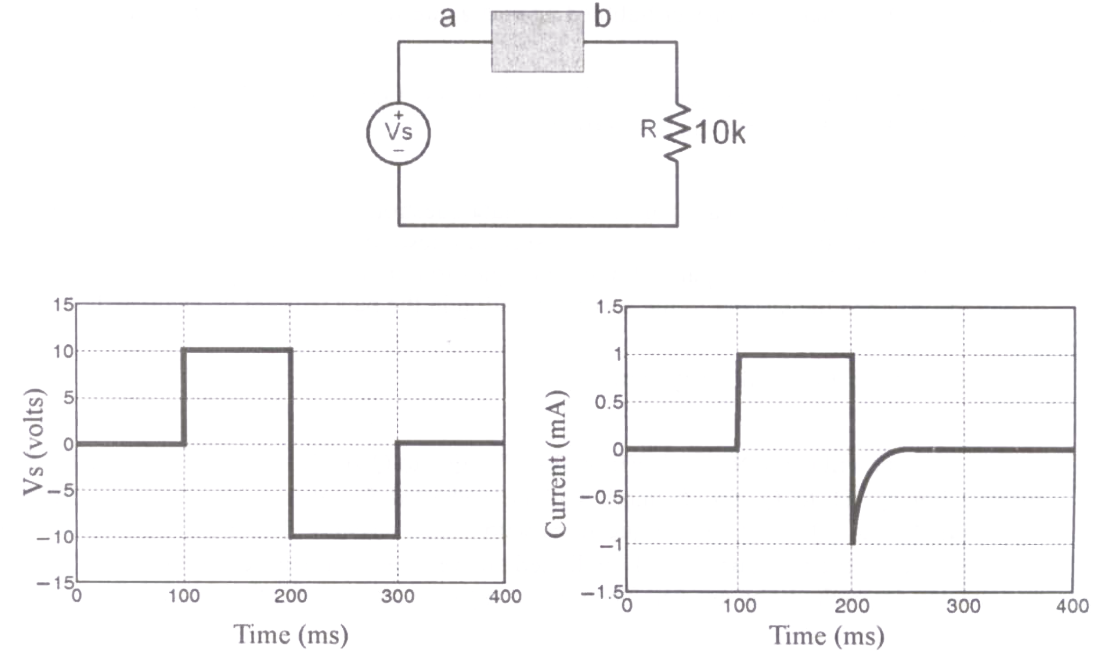

The following circuit has a source voltage Vs as shown in the graph. The current through the circuit is also shown. The element connected between a and b could be

Question diagram

A

Option A diagram

B

Option B diagram

C

Option C diagram

D

Option D diagram

4
2009 · Unclassified
Electrical Engineering (EE) 2009

The two inputs of a CRO are fed with two stationary periodic signals. In the X-Y mode, the screen shows a figure which changes from ellipse to circle and back to ellipse with its major axis changing orientation slowly and repeatedly. The following inference can be made from this.

A
The signals are not sinusoidal
B
The amplitudes of the signals are very close but not equal
C
The signals are sinusoidal with their frequencies very close but not equal
D
There is a constant but small phase difference between the signals
5
2009 · Unclassified
Electrical Engineering (EE) 2009

The increasing order of speed of data access for the following devices is (i) Cache Memory (ii) CDROM (iii) Dynamic RAM (iv) Processor Registers (v) Magnetic Tape

A
(v), (ii), (iii), (i), (iv)
B
(v), (ii), (iii), (iv), (i)
C
(ii), (v), (iii), (i), (iv)
D
(v), (ii), (i), (iii), (iv)
6
2009 · Unclassified
Electrical Engineering (EE) 2009

A field excitation of 20 A in a certain alternator results in an armature current of 400 A in short circuit and a terminal voltage of 2000 V on open circuit. The magnitude of the internal voltage drop within the machine at a load current of 200 A is

A
1 V
B
10 V
C
100 V
D
1000 V
