All Network Elements previous year questions

Practice every matching question in batches of 20, with every available option.

1
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
A three phase balanced star connected voltage source with frequency \(\omega\) rad/s is connected to a star connected balanced load which is purely inductive. The instantaneous line currents and phase to neutral voltages are denoted by (\(i_a\), \(i_b\), \(i_c\)) and (\(v_{an}\), \(v_{bn}\), \(v_{cn}\)) respectively, and their rms values are denoted by V and I. If \(R = [v_{an} \ v_{bn} \ v_{cn}] \begin{bmatrix} 0 & \frac{1}{\sqrt{3}} & -\frac{1}{\sqrt{3}} \\ -\frac{1}{\sqrt{3}} & 0 & \frac{1}{\sqrt{3}} \\ \frac{1}{\sqrt{3}} & -\frac{1}{\sqrt{3}} & 0 \end{bmatrix} \begin{bmatrix} i_a \\ i_b \\ i_c \end{bmatrix}\), then the magnitude of R is
Open complete paper
2
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
Suppose we define a sequence transformation between "a-b-c" and "p-n-o" variables as follows: \(\begin{bmatrix} f_a \\ f_b \\ f_c \end{bmatrix} = k \begin{bmatrix} 1 & 1 & 1 \\ 1 & \alpha^2 & \alpha \\ 1 & \alpha & \alpha^2 \end{bmatrix} \begin{bmatrix} f_p \\ f_n \\ f_o \end{bmatrix}\), where \(\alpha = e^{j\frac{2\pi}{3}}\) and k is a constant. Now, if it is given that: \(\begin{bmatrix} V_p \\ V_n \\ V_o \end{bmatrix} = \begin{bmatrix} 0.5 & 0 & 0 \\ 0 & 0.5 & 0 \\ 0 & 0 & 2.0 \end{bmatrix} \begin{bmatrix} i_p \\ i_n \\ i_o \end{bmatrix}\) and \(\begin{bmatrix} V_a \\ V_b \\ V_c \end{bmatrix} = Z \begin{bmatrix} i_a \\ i_b \\ i_c \end{bmatrix}\), then,
Open complete paper
3
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007

A 230 V (Phase), 50 Hz, three-phase, 4-wire system has a phase sequence ABC. A unity power-factor load of 4 kW is connected between phase A and neutral N. It is desired to achieve zero neutral current through the use of a pure inductor and a pure capacitor in the other two phases. The value of inductor and capacitor is

Open complete paper
4
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007

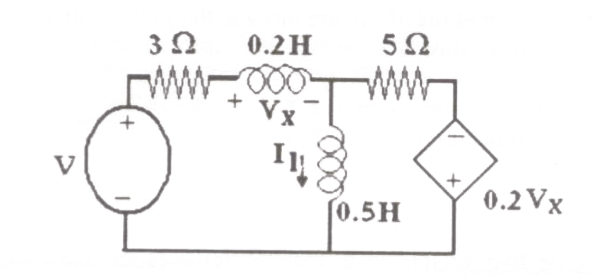

The state equation for the current Il shown in the network shown below in terms of the voltage Vx and the independent source V, is given by

Question diagram

Open complete paper
5
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007

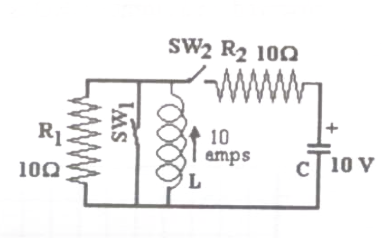

In the circuit shown in figure SW1 is initially CLOSED and SW2 is OPEN. The inductor L carries a current of 10 A and the capacitor is charged to 10 V with polarities as indicated. SW2 is initially CLOSED at t = 0- and SW1 is OPENED at t = 0. The current through C and the voltage across L at t = 0+ is

Question diagram

Open complete paper
6
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007

The R-L-C series circuit shown is supplied from a variable frequency voltage source. The admittance-locus of the R-L-C network at terminals AB for increasing frequency ω is

Question diagram

Open complete paper
7
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
In the figure given below all phasors are with reference to the potential at point “O”. The locus of voltage phasor VYX as R is varied from zero to infinity is shown by
Open complete paper
8
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
A 3 V dc supply with an internal resistance of 2 Ω supplies a passive non-linear resistance characterized by the relation VNL = INL2. The power dissipated in the non-linear resistance is
Open complete paper
9
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
The matrix A given below is the node incidence matrix of a network. The columns correspond to branches of the network while the rows correspond to nodes. Let V = [v1 v2 ... v6]T denote the vector of branch voltages while I = [i1 i2 ... i6]T that of branch currents. The vector E = [e1 e2 e3]T denotes the vector of node voltages relative to a common ground.

A =
1-11000
0-10-110
-1000-1-1
00-1101


Which of the following statements is true?
Open complete paper
10
2007 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2007
The current in the inductor is
Open complete paper
11
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008
The number of chords in the graph of the given circuit will be
Open complete paper
12
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008
The Thevenin’s equivalent of a circuit operating at $\omega = 5$ rad/s, has $V_{th} = 3.71 \angle -15.9^{\circ}$ V and $Z_{th} = 2.38 - j0.667 \, \Omega$. At this frequency, the minimal realization of the Thevenin’s impedance will have a
Open complete paper
13
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008
The time constant for the given circuit will be
Open complete paper
14
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008

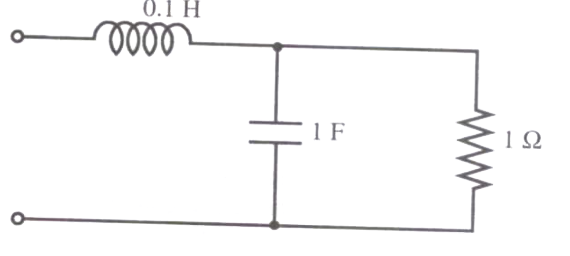

The resonant frequency for the given circuit will be

Question diagram

Open complete paper
15
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008

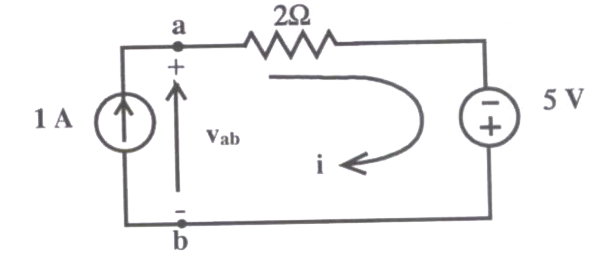

Assuming ideal elements in the circuit shown below, the voltage Vab will be

Question diagram

Open complete paper
16
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008

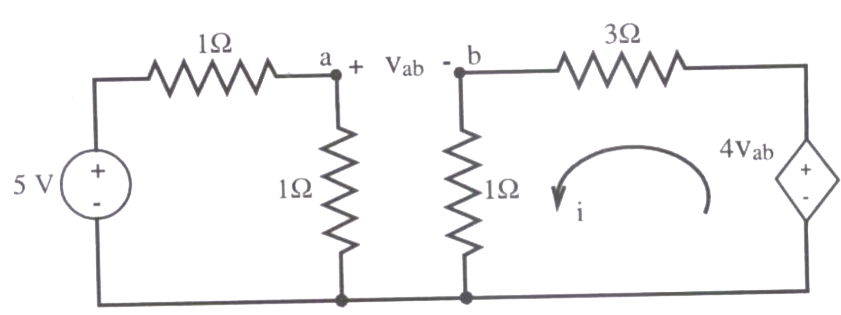

In the circuit shown in the figure, the value of the current i will be given by

Question diagram

Open complete paper
17
2008 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2008
The capacitor charged upto 5 μs, as per the current profile given in the figure, is connected across an inductor of 0.6 mH. Then the value of voltage across the capacitor after 1 μs will approximately be
Open complete paper
18
2009 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2009
The following circuit has a source voltage \(V_s\) as shown in the graph. The current through the circuit is also shown. The element connected between a and b could be
Open complete paper
19
2009 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2009

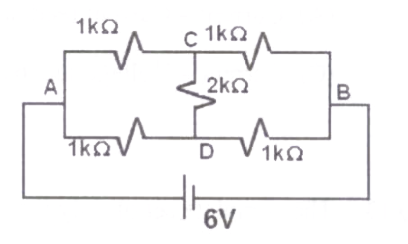

The current through the 2 kΩ resistance in the circuit shown is

Question diagram

Open complete paper
20
2009 · Electrical Engineering · Electric circuits · Network Elements
Electrical Engineering (EE) 2009
How many 200W/220V incandescent lamps connected in series would consume the same total power as a single 200W/220V incandescent lamp ?
Open complete paper

Showing 20 of 154 questions
