Chapter 5: Lines and Angles

Q1Written answer

The angles between North and West and South and East are

(a) complementary (b) supplementary

(c) both are acute (d) both are obtuse

Show solutionHide solution

Worked solution

Solution:-

(b) supplementary

NCERT Exemplar Class 7 Maths Solutions Chapter 5 Image 1

The angle between North and West is 90^o, the angle between South and East is 90^o, as shown in the figure above. So, 90^o + 90^o = 180^o.

Then, the angles between North and West and South and East are supplementary.

When the sum of the measures of two angles is 180°, then the angles are called supplementary angles.

Q2Written answer

Angles between South and West and South and East are

(a) vertically opposite angles (b) complementary angles

(c) making a linear pair (d) adjacent but not supplementary

Show solutionHide solution

Worked solution

Solution:-

(c) making a linear pair

A linear pair is a pair of adjacent angles whose non-common sides are opposite rays.

Q3Written answer

In Fig. 5.9, PQ is a mirror, AB is the incident ray and BC is the reflected ray. If ∠ ABC = 46^o, then ∠ ABP is equal to

NCERT Exemplar Class 7 Maths Solutions Chapter 5 Image 2

(a) 44^o (b) 67^o (c) 13^o (d) 62^o

Show solutionHide solution

Worked solution

Solution:-

(b) 67^o

As we know that, the angle formed by the incident ray and angle formed by the reflected ray is equal.

From the given figure,

PQ is a straight line,

So, ∠ABP + ∠ABC + ∠CBQ = 180^o

Let us assume the ∠ABP = ∠CBQ = x

Then,

x + 46^o+ x = 180^o

2x + 46^o = 180^o

2x = 180^o – 46^o

2x = 134^o

x = 134^o/2

x = 67^o

Therefore, the ∠ABP = ∠CBQ = 67^o

Q4Written answer

If the complement of an angle is 79^o, then the angle will be of

(a) 1^o (b) 11^o (c) 79^o (d) 101^o

Show solutionHide solution

Worked solution

Solution:-

(b) 11^o

When the sum of the measures of two angles is 90°, the angles are called complementary angles. Each of them is called complement of the other.

The given complement of an angle is 79^o

Let the measure of the angle be x^o.

Then,

x + 79^o = 90^o

x = 90^o – 79^o

x = 11^o

Hence, the measure of the angle is 11^o.

Q5Written answer

Angles which are both supplementary and vertically opposite are

(a) 95^o, 85^o (b) 90^o, 90^o (c) 100^o, 80^o (d) 45^o, 45^o

Show solutionHide solution

Worked solution

Solution:-

(b) 90^o, 90^o

When the sum of the measures of two angles is 180°, then the angles are called supplementary angles.

Q6Written answer

The angle which makes a linear pair with an angle of 61^o is of

(a) 29^o (b) 61^o (c) 122^o (d) 119^o

Show solutionHide solution

Worked solution

Solution:-

(d) 119^o

A linear pair is a pair of adjacent angles whose non-common sides are opposite rays.

We know that, measure of sum of adjacent angles is equal to 180^o.

Let the measure of other angle be x^o.

Then,

x + 61^o = 180^o

x = 180^o – 61^o

x = 119^o

Q7Written answer

The angles x and 90^o – x are

(a) supplementary (b) complementary

(c) vertically opposite (d) making a linear pair

Show solutionHide solution

Worked solution

Solution:-

(b) complementary

When the sum of the measures of two angles is 90^o, then the angles are called complementary angles.

x + 90^o – x = 90^o

90^o = 90^o

LHS = RHS

Q8Written answer

The angles x – 10^o and 190^o – x are

(a) interior angles on the same side of the transversal

(b) making a linear pair

(c) complementary

(d) supplementary

Show solutionHide solution

Worked solution

Solution:-

(d) supplementary

When the sum of the measures of two angles is 180^o, then the angles are called supplementary angles.

x – 10^o + 190^o – x = 180^o

190^o – 10 = 180^o

180^o = 180^o

LHS = RHS

Q9Written answer

In Fig. 5.10, the value of x is

NCERT Exemplar Class 7 Maths Solutions Chapter 5 Image 3

(a) 110^o (b) 46^o (c) 64^o (d) 150^o

Show solutionHide solution

Worked solution

Solution:-

(d) 150^o

The sum of all angles about a point given in the figure is equal to 360^o.

Then, 100^o + 46^o + 64^o + x = 360^o

210^o + x = 360^o

x = 360^o – 210^o

x = 150^o

Q10Written answer

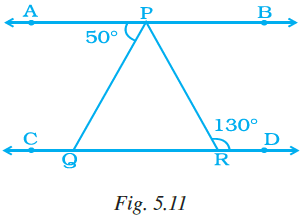

In Fig. 5.11, if AB || CD, ∠ APQ = 50^o and ∠PRD = 130^o, then ∠ QPR is

NCERT Exemplar Class 7 Maths Solutions Chapter 5 Image 4

(a) 130^o (b) 50^o (c) 80^o (d) 30^o

Show solutionHide solution

Worked solution

Solution:-

(c) 80^o

We know that, ∠APR = ∠PRD … [because interior alternate angles]

∠APQ + ∠QPR = 130^o

50^o + ∠QPR = 130^o

∠QPR = 130^o – 50^o

∠QPR = 80^o
