Optics - Physics Previous Year Questions
Practice Optics - Physics previous year questions organised from real papers, with year-wise coverage and clear topic navigation.
5Papers
5Years
6Questions
1Topics
Optics question pattern
Every graph below is calculated only from this selection.
Questions by year
Year-wise coverage for Optics. Each bar uses a separate theme-derived color.
Question type distribution
MCQ, numerical, multiple-select and other formats found in these papers.
6questions
Multiple Choices
6
100%
Subject weightage
Top subjects by unique question coverage.
Most asked topics
Top topics across the included previous year papers.
Subtopic coverage
Top subtopics inside this exact selection.
Paper coverage
Question coverage for the most populated papers. Every active PYP paper remains listed below.
Browse by subtopics
Open a focused page built from the same verified paper data.
Included previous year papers
Newest papers appear first. Sort by year, question coverage or name.
| Paper | Year / session | Questions in this view | Open |
|---|---|---|---|
| IAT IISER 2025 | 2025 | 2 | View paper |
| IAT IISER 2024 | 2024 | 1 | View paper |
| IAT IISER 2023 | 2023 | 1 | View paper |
| IAT IISER 2022 | 2022 | 1 | View paper |
| IAT IISER 2020 | 2020 | 1 | View paper |
Sample previous year questions
A varied preview from the papers represented in this selection, with every available option.
2020 · Physics · Optics · Ray Optics
IAT IISER 2020
What is the maximum angle of incidence $\theta_i$ in the figure for which the ray would satisfy the condition for total internal reflection at the boundary of media of refractive indices $n_1$ and $n_2$, where $n_1>n_2$ ?
+
2022 · Physics · Optics · Ray Optics
IAT IISER 2022
A thin lens made of material of refractive index $n_l$ forms the image at the position $I$ of a point object held at $O$ on the central axis of the lens, as is shown in the ray diagram below. Consider that the refractive index of the medium is $n_m$ and $n_l>n_m$ for the figure given. Where does the image form when $n_l
Open complete paper
2023 · Physics · Optics · Ray Optics
IAT IISER 2023
An object is placed in front of a convex lens. A real inverted image of double its size is formed. When the object is moved closer to the lens by a distance $d$, the image shifts away from the lens by a distance $8 d$ from its previous position. What is the magnitude of the magnification in the final setup?
Open complete paper
2024 · Physics · Optics · Ray Optics
IAT IISER 2024
The refractive indices $(n)$ of two transparent slabs are 2 and $2 / \sqrt{3}$. They are attached together and placed in a third transparent medium of refractive index $\sqrt{2}$, as shown in the figure. The thickness of the upper slab is $I \mathrm{~cm}$. A monochromatic light ray is incident on the upper slab at $45^{\circ}$. What would be the thickness in cm of the lower slab such that the lateral shift of the ray after passing through both the slabs is zero?
Open complete paper
2025 · Physics · Optics · Ray Optics
IAT IISER 2025
Consider an equilateral prism of refractive index 1.5 and a parallelepiped block of refractive index 2.0 arranged as shown in the figure such that their adjacent faces are parallel. A light ray enters the prism from air at an angle of incidence such that the ray travels through the prism parallel to its base. What is the angle of emergence $\theta$ ?
2025 · Physics · Optics · Wave Optics
IAT IISER 2025

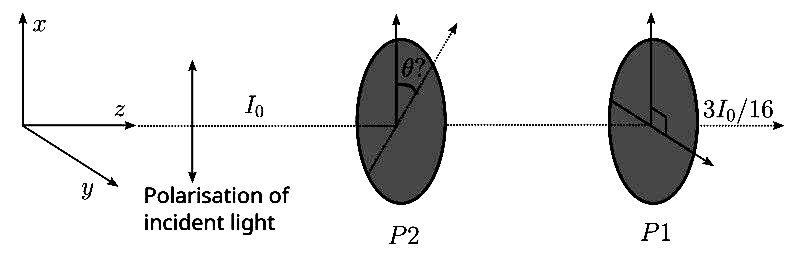

A source produces a light beam of intensity $I_0$ polarized along the $x$-direction. The beam is sent along the $z$-direction. It enters a polaroid $P 1$ with its polaroid axis aligned along the $y$-direction so that no light exits the polaroid. When another polaroid $P 2$ is placed in between the source and $P 1$, the intensity measured after $P 1$ is $3 I_0 / 16$. Which among the following is a possible value of $\theta$, the angle of the polaroid axis measured from the $x$-axis?
