All Bridges and Electrical Measurements previous year questions

Practice every matching question in batches of 20, with every available option.

1
2007 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2007

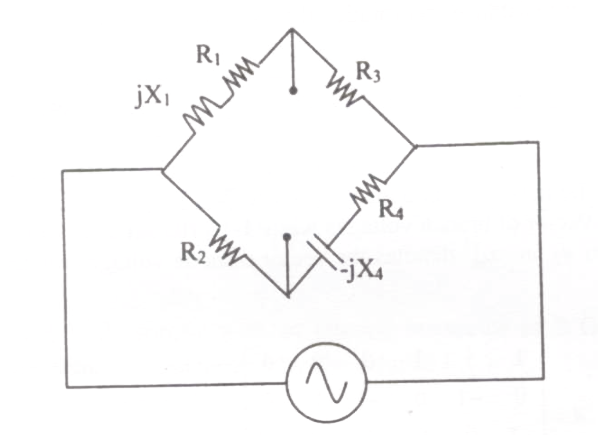

A bridge circuit is shown in the figure below. Which one of the sequences given below is most suitable for balancing the bridge?

Question diagram

Open complete paper
2
2008 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2008
The ac bridge shown in the figure is used to measure the impedance Z.

If the bridge is balanced for oscillator frequency f = 2 kHz, then the impedance Z will be
Open complete paper
3
2009 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2009
The pressure coil of a dynamometer type wattmeter is
Open complete paper
4
2009 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2009

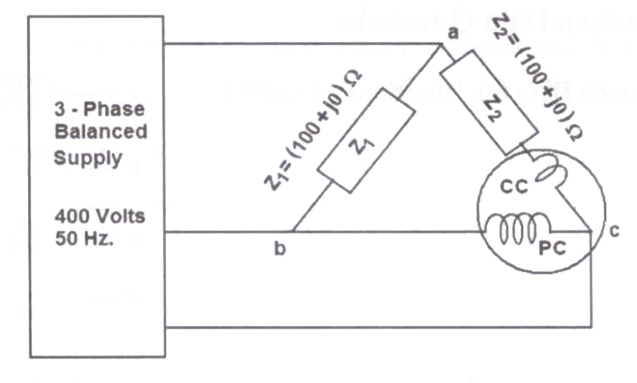

The figure shows a three-phase delta connected load supplied from a 400V, 50 Hz, 3-phase balanced source. The pressure coil (PC) and current coil (CC) of a wattmeter are connected to the load as shown, with the coil polarities suitably selected to ensure a positive deflection. The wattmeter reading will be

Question diagram

Open complete paper
5
2010 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2010

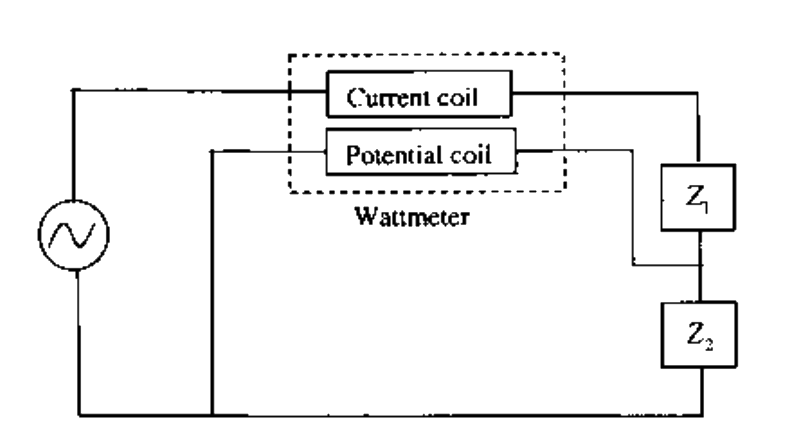

A wattmeter is connected as shown in the figure. The wattmeter reads

Question diagram

Open complete paper
6
2010 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2010

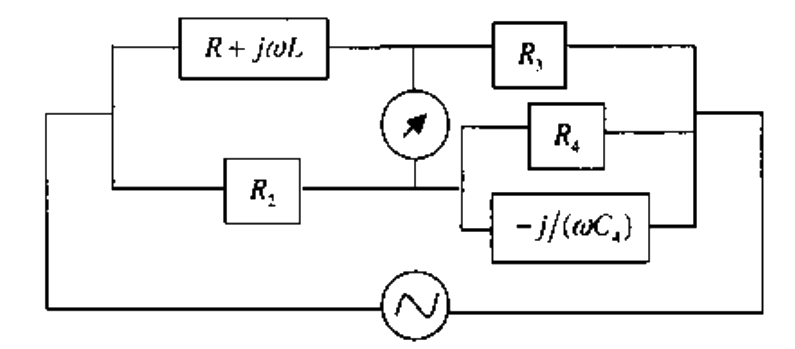

The Maxwell's bridge shown in the figure is at balance. The parameters of the inductive coil are

Question diagram

Open complete paper
7
2011 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2011
Consider the following statements:
(i) The compensating coil of a low power factor wattmeter compensates the effect of the impedance of the current coil.
(ii) The compensating coil of a low power factor wattmeter compensates the effect of the impedance of the voltage coil circuit.
Open complete paper
8
2011 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2011

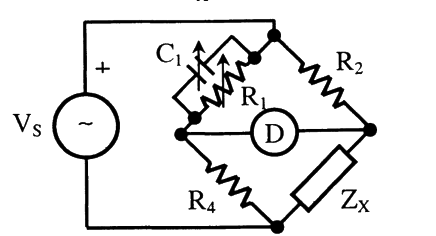

The bridge circuit shown in the figure below is used for the measurement of an unknown element Zx. The bridge circuit is best suited when Zx is a

Question diagram

Open complete paper
9
2012 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2012

The bridge method commonly used for finding mutual inductance is

Open complete paper
10
2013 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2013 [Session 1]

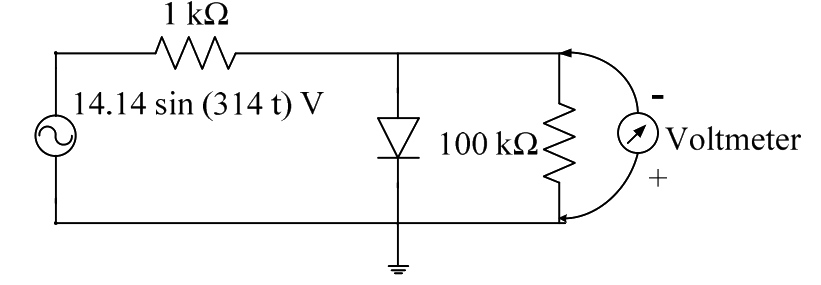

The input impedance of the permanent magnet moving coil (PMMC) voltmeter is infinite. Assuming that the diode shown in the figure below is ideal, the reading of the voltmeter in Volts is

Question diagram

Open complete paper
11
2013 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2013 [Session 1]
A strain gauge forms one arm of the bridge shown in the figure below and has a nominal resistance without any load as Rg = 300 Ω. Other bridge resistances are R1 = R2 = R3 = 300 Ω. The maximum permissible current through the strain gauge is 20 mA. During certain measurement when the bridge is excited by maximum permissible voltage and the strain gauge resistance is increased by 1% over the nominal value, the output voltage V0 in mV is
Open complete paper
12
2013 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2013 [Session 2]
A strain gauge forms one arm of the bridge shown in the figure below and has a nominal resistance without any load as \( R_1 = 300 \Omega \). Other bridge resistances are \( R_1 = R_2 = R_3 = 300 \Omega \). The maximum permissible current through the strain gauge is 20 mA. During certain measurement when the bridge is excited by maximum permissible voltage and the strain gauge resistance is increased by 1% over the nominal value, the output voltage \( V_0 \) in mV is
Open complete paper
13
2013 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2013 [Session 3]
A strain gauge forms one arm of the bridge shown in the figure below and has a nominal resistance without any load as \(R_g = 300 \Omega\). Other bridge resistors are \(R_1 = R_2 = R_3 = 300 \Omega\). The maximum permissible current through the strain gauge is 20 mA. During certain measurement when the bridge is excited by maximum permissible voltage and the strain gauge resistance is increased by 1% over the nominal value, the output voltage \(V_0\) in mV is
Open complete paper
14
2013 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2013 [Session 4]
A strain gauge forms one arm of the bridge shown in the figure below and has a nominal resistance without any load as \(R_s = 300 Ω\). Other bridge resistances are \(R_1 = R_2 = R_3 = 300 Ω\). The maximum permissible current through the strain gauge is 20 mA. During certain measurement when the bridge is excited by maximum permissible voltage and the strain gauge resistance is increased by 1% over the nominal value, the output voltage \(V_0\) in mV is
Open complete paper
15
2014 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2014 [Session 1]
Power consumed by a balanced 3-phase, 3-wire load is measured by the two wattmeter method. The first wattmeter reads twice that of the second. Then the load impedance angle in radians is
Open complete paper
16
2014 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2014 [Session 2]
While measuring power of a three-phase balanced load by the two-wattmeter method, the readings are 100 W and 250 W. The power factor of the load is ______.
Open complete paper
17
2018 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2018

Two wattmeter method is used for measurement of power in a balanced three-phase load supplied from a balanced three-phase system. If one of the wattmeters reads half of the other (both positive), then the power factor of the load is

Open complete paper
18
2021 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2021

Inductance is measured by

Open complete paper
19
2021 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2021

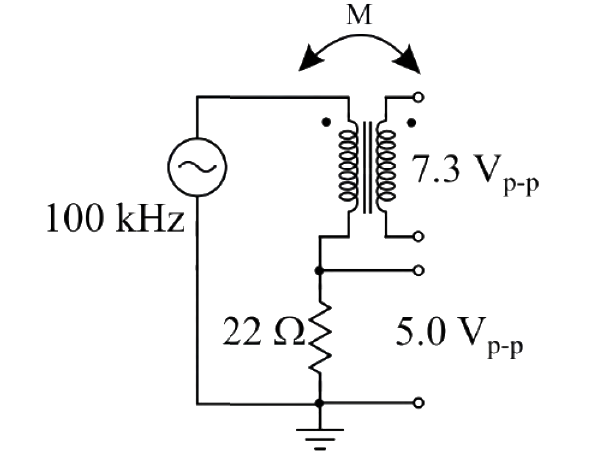

An air-core radio-frequency transformer as shown has a primary winding and a secondary winding. The mutual inductance M between the windings of the transformer is ______ μH. (Round off to 2 decimal places.)

Question diagram

Open complete paper
20
2022 · Electrical Engineering · Electrical and Electronic Measurements · Bridges and Electrical Measurements
Electrical Engineering (EE) 2022
A balanced Wheatstone bridge \(ABCD\) has the following arm resistances: \(R_{AB} = 1\ k\Omega \pm 2.1\%\) ; \(R_{BC} = 100\ \Omega \pm 0.5\%\) ; \(R_{CD}\) is an unknown resistance; \(R_{DA} = 300\ \Omega \pm 0.4\%\). The value of \(R_{CD}\) and its accuracy is
Open complete paper

Showing 20 of 21 questions
