A horizontal wire carries 160 A current below which another wire of linear density $10 \mathrm{~g} / \mathrm{m}$ carrying a current is kept at 4 cm distance. If the wire kept below hangs in air, what is the current in this wire, when the direction of current in both the wires is same? $\left(g=10 \mathrm{~m} / \mathrm{s}^2\right.$ and $\left.\mu_0=4 \pi \times 10^{-7}\right)$

A long solenoid has 70 turns / cm and carries current $I$. An electron moves within the solenoid in a circle of radius 2.5 cm perpendicular to the solenoid axis. If the speed of the electron is $4.4 \times 10^6 \mathrm{~m} / \mathrm{s}$, then the current $I$ in the solenoid is

(take $\mu_0=4 \pi \times 10^{-7}$ Si unit, mass electron $=9 \times 10^{-31}$

kg , charge of electron $1.6 \times 10^{-19} \mathrm{C}$ )

A current $I=5 \mathrm{~A}$ flows along a thin wire shaped as shown in figure. The radius of curved part of the wire is equal to $R=100 \mathrm{~mm}$, the angle $2 \phi=90^{\circ}$. The magnitude of magnetic field at the point $O$ is approximately

$$\left(\text { use, } \frac{\mu_0}{4 \pi}=10^{-7} \mathrm{~T} \mathrm{~mA}^{-1}\right)$$

A toroid has a core (non-ferro magnetic) of inner radius 24 cm and outer radius 26 cm around which 2000 turns of a wire is wound. If the current in the wire is 12 A , the magnetic field inside the core of the toroid is

The magnetic field at a perpendicular distance of one metre from a wire carrying current of 1 A is

A circular coil of area $2 \mathrm{~cm}^2$ has 1000 turns. If the current through the coil is 1 A , then its magnetic moment is

A closely wound solenoid of 80 cm long has 5 layers of windings of 400 turns each. The diameter of the solenoid is 1.8 cm . If the current carried is 8 A , then the magnitude of the magnetic field inside the solenoid near its centre is approximately

A current $i$ flows in an infinitely long, straight and thin walled pipe, then

A charge $q$ moves with a velocity $2 \mathrm{~ms}^{-1}$ along $X$-axis in a uniform magnetic field $\mathbf{B}=(2 \hat{\mathbf{i}}+2 \hat{\mathbf{j}}+3 \hat{\mathbf{k}})$ T, then charge will experience a force

A current $i$ is flowing through a wire of length ' $L$ '. If it is made into a circular loop of one turn, then its magnetic moment is

A current carrying loop is placed in a uniform magnetic field $B$ in different orientations I, II, III and IV as shown in the figure. The correct order of decreasing potential energy is

( $\hat{\mathbf{n}}=$ unit vector normal to the plane of the loop)

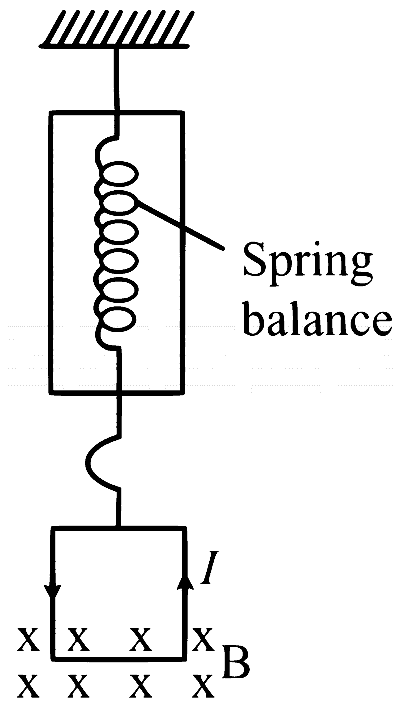

A square loop of side $a$ and carrying a current $I$ is suspended from an insulating hanger of a spring balance as shown in figure. The transverse magnetic field $B$ directed into the paper occurs only at the bottom side of the loop. When direction of current in the loop is reversed, the change in the reading of spring balance is

Three long, straight, parallel wires carrying different currents are arranged as shown in the diagram. In the given arrangement, let the net force per unit length on the wire $C$ be $\mathbf{F}$. If the wire $B$ is oved without disturbing the other two wires, then the force per unit length on wire $A$ is

It is found that a non-zero current element is unable to produce any magnetic field at a particular point. Then the angle between the current element and the position vector of that point with respect to the current element is

A particle of charge $q$ and mass $m$ moves in a circular orbit of radius $r$ with angular speed $\omega$. The ratio of the magnitude of its magnetic moment to that of its angular momentum is

Two tangent galvanometers $A$ and $B$ have coils of radii 8 cm and 16 cm respectively and having resistance of 8 $\Omega$ each. They are connected in parallel with a cell of emf 4 V and negligible internal resistance. The deflections produced in the tangent galvanometers $A$ and $B$ are $30^{\circ}$ and $60^{\circ}$, respectively. If $A$ has 2 turns, then $B$ must have

A 50 cm long solenoid has winding of 400 turns. What current must pass through it to produce a magnetic field of induction $4 \pi \times 10^{-3} \mathrm{~T}$ at the centre?

A circular coil of 10 turns and radius 10 cm is placed in a uniform magnetic field of 0.1 T normal to the plane of the coil. If the current in the coil is 5 A , then the magnitude of the torque on the coil is

Statement I A uniform electric field and a uniform magnetic field are pointed in the same direction. If an electron is projected in the same direction, the electron velocity will decrease in magnitude.

Statement II Two infinite long parallel wires are carrying current in the same direction. The magnetic field at a point mid-way between the wires is zero.

Statement III No net force acts on a rectangular coil carrying a steady current, when suspended in a uniform magnetic field.

Which of the following is correct?

Two parallel conductor each 50 m long, separated by 0.2 m experience a force of 1 N . If the current in first conductor is twice that of the second conductor, then what is the current in the second conductor?

$$\left(\mu=4 \pi \times 10^{-7}\right)$$
