Practice Drawdown, Buildup and Type-curve Analysis - Oil and Gas Well Testing - Petroleum Engineering previous year questions organised from real papers, with year-wise coverage and clear topic navigation.
Every graph below is calculated only from this selection.
Year-wise coverage for Drawdown, Buildup and Type-curve Analysis. Each bar uses a separate theme-derived color.
How the classified questions are distributed by difficulty.
MCQ, numerical, multiple-select and other formats found in these papers.
Top subjects by unique question coverage.
Top topics across the included previous year papers.
Top subtopics inside this exact selection.
Question coverage for the most populated papers. Every active PYP paper remains listed below.
Newest papers appear first. Sort by year, question coverage or name.
| Paper | Year / session | Questions in this view | Open |
|---|---|---|---|
| Petroleum Engineering (PE) 2026 | 2026 | 4 | View paper |
| Petroleum Engineering (PE) 2025 | 2025 | 5 | View paper |
| Petroleum Engineering (PE) 2024 | 2024 | 2 | View paper |
| Petroleum Engineering (PE) 2023 | 2023 | 2 | View paper |
| Petroleum Engineering (PE) 2022 | 2022 | 3 | View paper |
| Petroleum Engineering (PE) 2021 | 2021 | 3 | View paper |
| Petroleum Engineering (PE) 2020 | 2020 | 2 | View paper |
| Petroleum Engineering (PE) 2018 | 2018 | 2 | View paper |
| Petroleum Engineering (PE) 2017 | 2017 | 2 | View paper |
| Petroleum Engineering (PE) 2016 | 2016 | 2 | View paper |
Practice every matching question in batches of 20, with every available option.
An oil emulsion having 15% water cut by weight is being treated in a horizontal heater-treater unit at the rate of 6000 kg/hr. The inlet temperature of the emulsion is 30°C and operating temperature of the heater-treater is 40°C. The specific heat capacity of water and oil are 1 kcal/kg°C and 0.5 kcal/kg°C, respectively. Assuming 10% of the total heat input is lost to the surroundings, the total heat energy required to break the emulsion in the heater-treater unit is ______ kcal/hr. (write answer with one decimal place)
A drawdown test is conducted at a constant flow rate in an oil well for a reservoir with constant compressibility. Which one of the following is valid for semi steady state condition?
Identify the CORRECT match for the flow regimes (Group 1) with the corresponding slopes of the pressure derivative (Group 2) used in the type curve analysis.
| Flow Regime (Group 1) | Pressure Derivative Slope (Group 2) |
|---|---|
| I. Spherical flow | P. 1 |
| II. Linear flow | Q. 1/4 |
| III. Bilinear flow | R. -1/2 |
| IV. Boundary dominated flow | S. 1/2 |

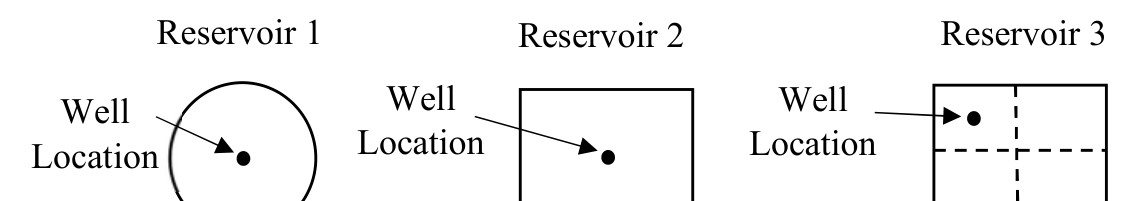

Well testing is to be conducted on the bounded sandstone reservoirs as shown in the following figures. All the reservoirs have the same drainage area, rock and fluid properties, and well bore conditions. Which of the following statements are CORRECT for the given reservoirs?

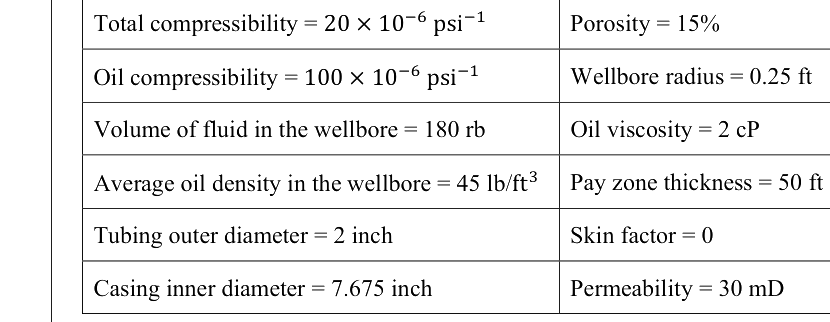

| Total compressibility = 20 × 10−6 psi−1 | Porosity = 15% |
| Oil compressibility = 100 × 10−6 psi−1 | Wellbore radius = 0.25 ft |
| Volume of fluid in the wellbore = 180 rb | Oil viscosity = 2 cP |
| Average oil density in the wellbore = 45 lb/ft3 | Pay zone thickness = 50 ft |
| Tubing outer diameter = 2 inch | Skin factor = 0 |
| Casing inner diameter = 7.675 inch | Permeability = 30 mD |
Well tests can be classified as either ‘single well productivity test’ or ‘descriptive reservoir test’. Which ONE of the following CANNOT be determined from a ‘single well productivity test’?
Which ONE of the following CANNOT be obtained from pressure transient analysis in well testing?
Which of the following option(s) is/are CORRECT for well testing analysis of a reservoir?
Showing 20 of 27 questions
