The layout of a Tension Leg Platform (TLP) is shown in the following figure. It consists of four interconnected pontoons at the bottom and four cylindrical columns, which support the working platform at the top. The density of sea water is 1025 kg/m³. Neglect the weight and buoyancy of the tethers. During operation, the maximum mass (in metric tonnes) of the entire structure must lie between

As per the UNFC mineral resources classification system, the highest category of resource is indicated by

A shovel needs to be selected from four models of different capacities, S1 to S4, for loading of dumpers. The operational data for the shovel-dumper combination are provided. The mean arrival rate of the dumpers at the loading point is 5 per hour and the waiting cost of dumper is ₹ 200 per hour. The inter-arrival time of dumpers and loading time of shovel follows exponential distribution. Ignoring the shovel hiring cost, the shovel type that will have minimum total cost (waiting and operating cost) is

Model	Operating cost of shovel (₹ per hour)	Mean loading rate of shovel (number of dumpers per hour)
S1	800	8
S2	850	9
S3	920	10
S4	1000	11

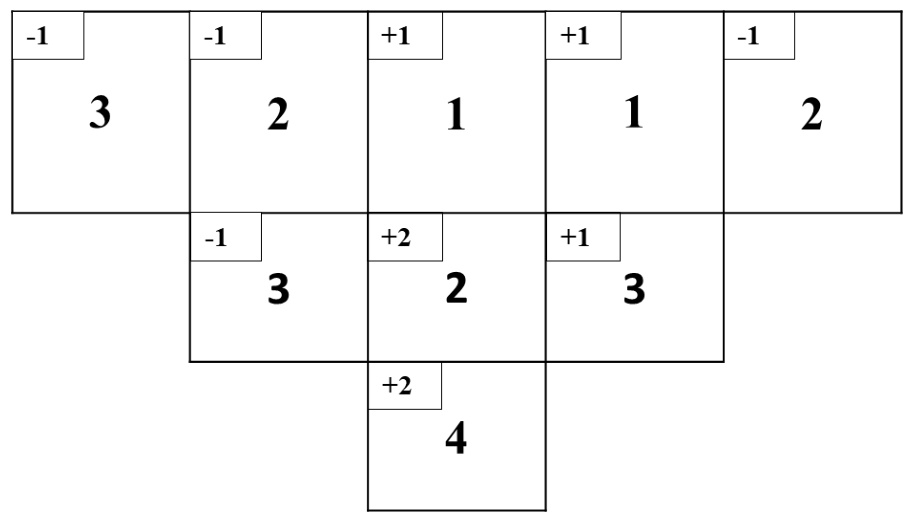

An economic block model along with extraction sequence is shown. The numbers given at the centre of the block represent the year of extraction, and that at the corners represent the block economic value in ₹ (lakhs). If the discount rate is 10%, the net present value (NPV), in lakhs, is ₹ __________. (rounded off to two decimal place)

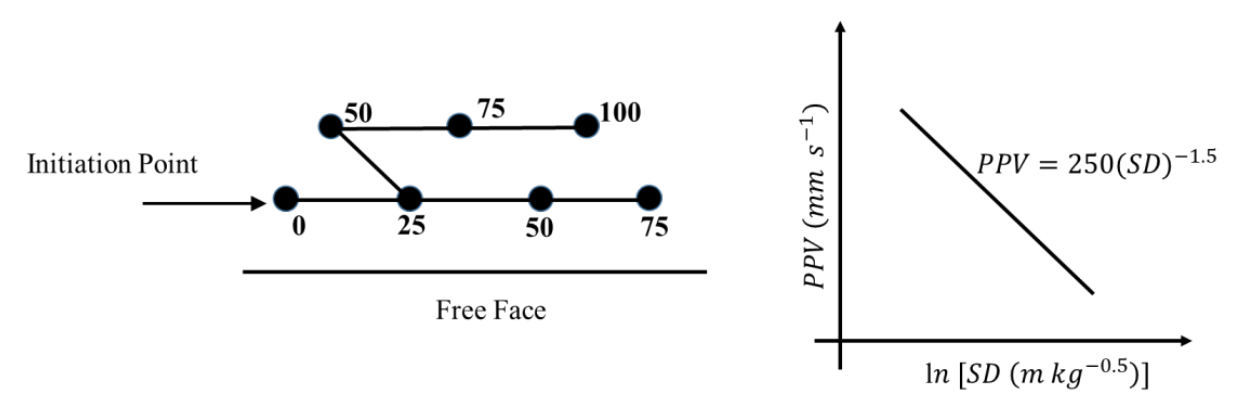

In a bench blasting, as shown, 49 kg of explosive is put in each hole. The detonation time of holes, in millisecond, and the associated scale distance (SD) vs. peak particle velocity (PPV) plot for the given blast pattern is shown. The PPV at a distance of 100 m, in mm s⁻¹, is ______. (rounded off to two decimal places)
