Electronics and Communication Engineering (EC) 20262026
All Junctions, Transistors and Optoelectronic Devices previous year questions
Practice every matching question in batches of 20, with every available option.
1
2007 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2007
The electron and hole concentrations in an intrinsic semiconductor are \(n_i\) per \(cm^3\) at 300 K. Now, if acceptor impurities are introduced with a concentration of \(N_A\) per \(cm^3\) (where \(N_A \gg n_i\)), the electron concentration per \(cm^3\) at 300 K will be
2007 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2007
A p⁺-n junction has a built-in potential of 0.8 V. The depletion layer width at a reverse bias of 1.2 V is 2 μm. For a reverse bias of 7.2 V, the depletion layer width will be
2007 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2007
Group I lists four types of p-n junction diodes. Match each device in Group I with one of the options in Group II to indicate the bias condition of that device in its normal mode of operation.
Group I
P. Zener Diode
Q. Solar cell
R. LASER diode
S. Avalanche Photodiode
Group II
1. Forward bias
2. Reverse bias
2007 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2007
Group I lists four different semiconductor devices. Match each device in Group I with its characteristic property in Group II.
Group I
P. BJT
Q. MOS capacitor
R. LASER diode
S. JFET
Group II
1. Population inversion
2. Pinch-off voltage
3. Early effect
4. Flat-band voltage
2007 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2007

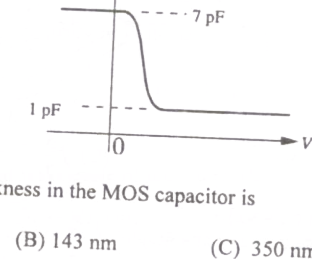

Consider the following statements about the C-V characteristics plot: S1: The MOS capacitor has an n-type substrate. S2: If positive charges are introduced in the oxide, the C-V plot will shift to the left. Then which of the following is true?
2008 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2008
A silicon wafer has 100 nm of oxide on it and is inserted in a furnace at a temperature above 1000°C for further oxidation in dry oxygen. The oxidation rate
2008 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2008
The drain current of a MOSFET in saturation is given by \(I_D = K(V_{GS} - V_T)^2\) where \(K\) is a constant. The magnitude of the transconductance \(g_m\) is
2008 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2008
The measured transconductance $g_m$ of an NMOS transistor operating in the linear region is plotted against the gate voltage $V_G$ at a constant drain voltage $V_D$. Which of the following figures represents the expected dependence of $g_m$ on $V_G$?
2008 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2008

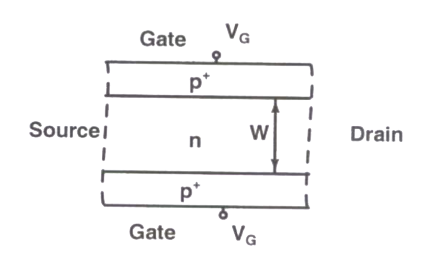

The cross section of a JFET is shown in the following figure. Let $V_G$ be -2V and let $V_P$ be the initial pinch-off voltage. If the width W is doubled (with other geometrical parameters and doping levels remaining the same), then the ratio between the mutual transconductances of the initial and the modified JFET is
2008 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2008
Consider the following assertions. S1: For Zener effect to occur, a very abrupt junction is required. S2: For quantum tunneling to occur, a very narrow energy barrier is required. Which of the following is correct?
2009 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2009
Consider the following two statements about the internal conditions in an n-channel MOSFET operating in the active region.\nS1: The inversion charge decreases from source to drain\nS2: The channel potential increases from source to drain\nWhich of the following is correct?
2010 · Electronics & Communication Engineering · Electronic Devices · Junctions, Transistors and Optoelectronic Devices
Electronics & Communication Engineering (EC) 2010
In a uniformly doped BJT, assume that NE, NB and NC are the emitter, base and collector dopings in atoms/cm3, respectively. If the emitter injection efficiency of the BJT is close to unity, which one of the following conditions is TRUE?
