2008 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2008

For static electric and magnetic fields in an inhomogeneous source-free medium, which of the following represents the correct form of two of Maxwell's equations?

A

\(\nabla \cdot \mathbf{E} = 0\) and \(\nabla \times \mathbf{B} = 0\)

B

\(\nabla \cdot \mathbf{E} = 0\) and \(\nabla \cdot \mathbf{B} = 0\)

C

\(\nabla \times \mathbf{E} = 0\) and \(\nabla \cdot \mathbf{B} = 0\)

D

\(\nabla \times \mathbf{E} = 0\) and \(\nabla \times \mathbf{B} = 0\)

Open complete paper

2

2011 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2011

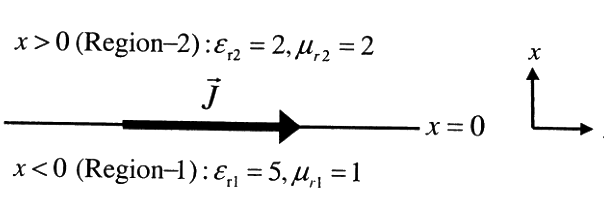

A current sheet $\vec{J} = 10\hat{a}_y \,\text{A/m}$ lies on the dielectric interface $x = 0$ between two dielectric media with $\epsilon_{r1} = 5$, $\mu_{r1} = 1$ in Region-1 ($x < 0$) and $\epsilon_{r2} = 2$, $\mu_{r2} = 2$ in Region-2 ($x > 0$). If the magnetic field in Region-1 at $x = 0^-$ is $\vec{H}_1 = 3\hat{a}_x + 30\hat{a}_y \,\text{A/m}$, the magnetic field in Region-2 at $x = 0^+$ is

A

$\vec{H}_2 = 1.5\hat{a}_x + 30\hat{a}_y - 10\hat{a}_z \,\text{A/m}$

B

$\vec{H}_2 = 3\hat{a}_x + 30\hat{a}_y - 10\hat{a}_z \,\text{A/m}$

C

$\vec{H}_2 = 1.5\hat{a}_x + 40\hat{a}_y \,\text{A/m}$

D

$\vec{H}_2 = 3\hat{a}_x + 30\hat{a}_y + 10\hat{a}_z \,\text{A/m}$

Open complete paper

3

2012 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2012

The magnetic field at a distance \( r \) from the center of the wire is proportional to

A

\(r \) for \(r < a \) and \(1/r^2 \) for \(r > a \)

B

\(0 \) for \(r < a \) and \(1/r \) for \(r > a \)

C

\(r \) for \(r < a \) and \(1/r \) for \(r > a \)

D

\(0 \) for \(r < a \) and \(1/r^2 \) for \(r > a \)

Open complete paper

4

2012 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2012

A hole of radius \( b \) (\( b < a \)) is now drilled along the length of the wire at a distance \( d \) from the center of the wire as shown below. The magnetic field inside the hole is

A

uniform and depends only on \(d \)

B

uniform and depends only on \(b \)

C

uniform and depends on both \(b \) and \(d \)

D

non uniform

Open complete paper

5

2013 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2013 [Session 1]

The divergence of the vector field \( \vec{A} = x\hat{a}_x + y\hat{a}_y + z\hat{a}_z \) is

A

0

B

1/3

C

1

D

3

Open complete paper

6

2014 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2014 [Session 1]

The force on a point charge \(+q\) kept at a distance \(d\) from the surface of an infinite grounded metal plate in a medium of permittivity \(\epsilon\) is

A

0

B

\(\frac{q^2}{16\pi\epsilon d^2}\) away from the plate

C

\(\frac{q^2}{16\pi\epsilon d^2}\) towards the plate

D

\(\frac{q^2}{4\pi\epsilon d^2}\) towards the plate

Open complete paper

7

2014 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2014 [Session 3]

A region shown below contains a perfect conducting half-space and air. The surface current \(\boldsymbol{K}_s\) on the surface of the perfect conductor is \(\boldsymbol{K}_s = \hat{\boldsymbol{z}} 2\) amperes per meter. The tangential \(\boldsymbol{H}\) field in the air just above the perfect conductor is

A

(\hat{x} + \hat{z})2\text{ amperes per meter}

B

\(\hat{x}2\text{ amperes per meter}\)

C

\(-\hat{z}2\text{ amperes per meter}\)

D

\(\hat{z}2\text{ amperes per meter}\)

Check answer

Open complete paper

8

2014 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2014 [Session 4]

The electric field (assumed to be one-dimensional) between two points A and B is shown. Let ψ_A and ψ_B be the electrostatic potentials at A and B, respectively. The value of ψ_B − ψ_A in Volts is __________

Check answer

Open complete paper

9

2014 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2014 [Session 4]

If E⃗ = −(2y³ − 3yz²)x̂ − (6xy² − 3xz²)ŷ + (6xyz)ẑ is the electric field in a source free region, a valid expression for the electrostatic potential is

A

xy³ − yz²

B

2xy³ − xyz²

C

y³ + xyz²

D

2xy³ − 3xyz²

Open complete paper

10

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 1]

Concentric spherical shells of radii 2 m, 4 m, and 8 m carry uniform surface charge densities of 20 nC/m², −4 nC/m² and ρ_s, respectively. The value of ρ_s (nC/m²) required to ensure that the electric flux density D = 0 at radius 10 m is ______

Check answer

Open complete paper

11

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 1]

The current density in a medium is given by \( \vec{J} = \frac{400 \sin\theta}{2\pi(r^2 + 4)} \hat{a}_r \text{ Am}^{-2} \) The total current and the average current density flowing through the portion of a spherical surface \( r = 0.8 \text{ m}, \frac{\pi}{12} \le \theta \le \frac{\pi}{4}, 0 \le \phi \le 2\pi \) are given, respectively, by

A

15.09 A, 12.86 Am^-2

B

18.73 A, 13.65 Am^-2

C

12.86 A, 9.23 Am^-2

D

10.28 A, 7.56 Am^-2

Open complete paper

12

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 2]

A uniform and constant magnetic field \( \mathbf{B} = \hat{z}B \) exists in the \( \hat{z} \) direction in vacuum. A particle of mass \( m \) with a small charge \( q \) is introduced into this region with an initial velocity \( \mathbf{v} = \hat{x}v_x + \hat{z}v_z \). Given that \( B, m, q, v_x \) and \( v_z \) are all non-zero, which one of the following describes the eventual trajectory of the particle?

A

Helical motion in the \(\hat{z} \) direction.

B

Circular motion in the \(xy \) plane.

C

Linear motion in the \(\hat{z} \) direction.

D

Linear motion in the \(\hat{x} \) direction.

Open complete paper

13

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 2]

The parallel-plate capacitor shown in the figure has movable plates. The capacitor is charged so that the energy stored in it is \(E\) when the plate separation is \(d\). The capacitor is then isolated electrically and the plates are moved such that the plate separation becomes \(2d\).
At this new plate separation, what is the energy stored in the capacitor, neglecting fringing effects?

A

2E

B

\(\sqrt{2}E\)

C

E

D

E/2

Open complete paper

14

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 2]

A positive charge \(q\) is placed at \(x = 0\) between two infinite metal plates placed at \(x = -d\) and at \(x = +d\) respectively. The metal plates lie in the \(yz\) plane.
The charge is at rest at \(t = 0\), when a voltage \(+V\) is applied to the plate at \(-d\) and voltage \(-V\) is applied to the plate at \(x = +d\). Assume that the quantity of the charge \(q\) is small enough that it does not perturb the field set up by the metal plates. The time that the charge \(q\) takes to reach the right plate is proportional to

A

\(d / V\)

B

\(\sqrt{d} / V\)

C

\(d / \sqrt{V}\)

D

\(\sqrt{d} / \sqrt{V}\)

Open complete paper

15

2016 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2016 [Session 3]

Faraday's law of electromagnetic induction is mathematically described by which one of the following equations?

A

\(\nabla \cdot \vec{B} = 0 \)

B

\(\nabla \cdot \vec{D} = \rho_v \)

C

\(\nabla \times \vec{E} = -\frac{\partial \vec{B}}{\partial t} \)

D

\(\nabla \times \vec{H} = \sigma \vec{E} + \frac{\partial \vec{D}}{\partial t} \)

Open complete paper

16

2017 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2017

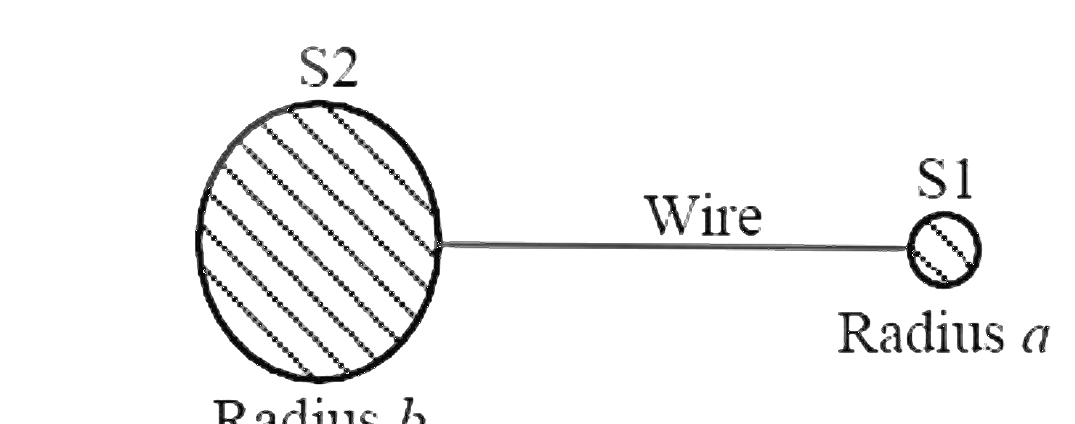

Two conducting spheres S1 and S2 of radii a and b (b > a) respectively, are placed far apart and connected by a long, thin conducting wire, as shown in the figure. For some charge placed on this structure, the potential and surface electric field on S1 are Va and Ea, and that on S2 are Vb and Eb, respectively. Then, which of the following is CORRECT?

A

Vₐ = Vb and Eₐ < Eb

B

Vₐ > Vb and Eₐ > Eb

C

Vₐ = Vb and Eₐ > Eb

D

Vₐ > Vb and Eₐ = Eb

Open complete paper

17

2019 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2019

What is the electric flux \(\int \vec{E} \cdot d\vec{a}\) through a quarter-cylinder of height H (as shown in the figure) due to an infinitely long line charge along the axis of the cylinder with a charge density of Q?

A

\(\frac{HQ}{\epsilon_0}\)

B

\(\frac{HQ}{4\epsilon_0}\)

C

\(\frac{H\epsilon_0}{4Q}\)

D

\(\frac{4H}{Q\epsilon_0}\)

Open complete paper

18

2019 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2019

Radiation resistance of a small dipole current element of length \( l \) at a frequency of 3 GHz is 3 ohms. If the length is changed by 1%, then the percentage change in the radiation resistance, rounded off to two decimal places, is ______%.

Check answer

Open complete paper

19

2019 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2019

Two identical copper wires W1 and W2, placed in parallel as shown in the figure, carry currents \(I\) and \(2I\), respectively, in opposite directions. If the two wires are separated by a distance of \(4r\), then the magnitude of the magnetic field \(\vec{B}\) between the wires at a distance \(r\) from W1 is

A

\(\frac{\mu_0 I}{6\pi r}\)

B

\(\frac{6\mu_0 I}{5\pi r}\)

C

\(\frac{5\mu_0 I}{6\pi r}\)

D

\(\frac{\mu_0^2 I}{2\pi r^2}\)

Open complete paper

20

2021 · Electronics & Communication Engineering · Electromagnetics · Maxwell's Equations

Electronics & Communication Engineering (EC) 2021

For a vector field \( \mathbf{D} = \rho \cos^2 \phi \, \mathbf{a}_\rho + z^2 \sin^2 \phi \, \mathbf{a}_\phi \) in a cylindrical coordinate system \((\rho, \phi, z)\) with unit vectors \(\mathbf{a}_\rho, \mathbf{a}_\phi, \mathbf{a}_z\), the net flux of \(\mathbf{D}\) leaving the closed surface of the cylinder \((\rho = 3, 0 \le z \le 2)\) (rounded off to two decimal places) is __________

Check answer
