Chapter 12: Statistics

Q1Written answer

A survey conducted by an organisation for the cause of illness and death among the women between the ages 15 – 44 (in years) worldwide found the following figures (in %):

S.No.	Causes	Female fatality rate (%)
1.	Reproductive health conditions	31.8
2.	Neuropsychiatric conditions	25.4
3.	Injuries	12.4
4.	Cardiovascular conditions	4.3
5.	Respiratory conditions	4.1
6.	Other causes	22.0

(i) Represent the information given above graphically.

(ii) Which condition is the major cause of women’s ill health and death worldwide?

(iii) Try to find out, with the help of your teacher, any two factors which play a major role in the cause in (ii) above being the major cause.

Show solutionHide solution

Worked solution

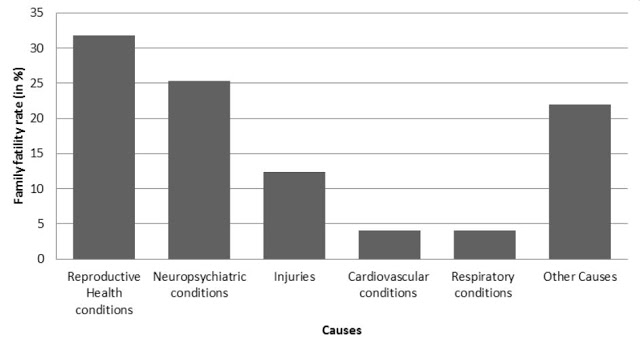

(i) The information given in the question is represented below graphically.

Ncert solutions class 9 chapter 14-2

(ii) We can observe from the graph that reproductive health conditions are the major cause of women’s ill health and death worldwide.

(iii) Two factors responsible for the cause in (ii) are

Lack of proper care and understanding.
Lack of medical facilities.

Q2Written answer

The following data on the number of girls (to the nearest ten) per thousand boys in different sections of Indian society are given below.

S.No.	Section	Number of girls per thousand boys
1.	Scheduled Caste (SC)	940
2.	Scheduled Tribe (ST)	970
3.	Non-SC/ST	920
4.	Backward districts	950
5.	Non-backward districts	920
6.	Rural	930
7.	Urban	910

(i) Represent the information above by a bar graph.

(ii) In the classroom, discuss what conclusions can be arrived at from the graph.

Show solutionHide solution

Worked solution

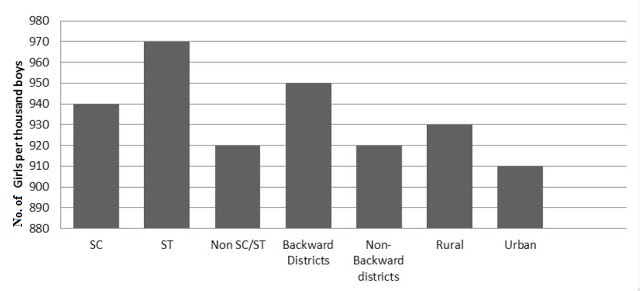

(i) The information given in the question is represented below graphically.

Ncert solutions class 9 chapter 14-3

(ii) From the above graph, we can conclude that the maximum number of girls per thousand boys is present in section ST. We can also observe that the backward districts and rural areas have more girls per thousand boys than non-backward districts and urban areas.

Q3Written answer

Given below are the seats won by different political parties in the polling outcome of state assembly elections:

Political party	A	B	C	D	E	F
Seats won	75	55	37	29	10	37

(i) Draw a bar graph to represent the polling results.

(ii) Which political party won the maximum number of seats?

Show solutionHide solution

Worked solution

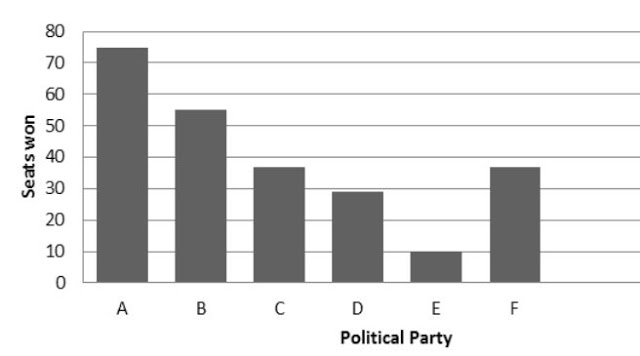

(i) The bar graph representing the polling results is given below.

(ii) From the bar graph, it is clear that Party A won the maximum number of seats.

Q4Written answer

The length of 40 leaves of a plant is measured correctly to one millimetre, and the obtained data is represented in the following table:

S.No.	Length (in mm)	Number of leaves
1.	118 – 126	3
2.	127 – 135	5
3.	136 – 144	9
4.	145 – 153	12
5.	154 – 162	5
6.	163 – 171	4
7.	172 – 180	2

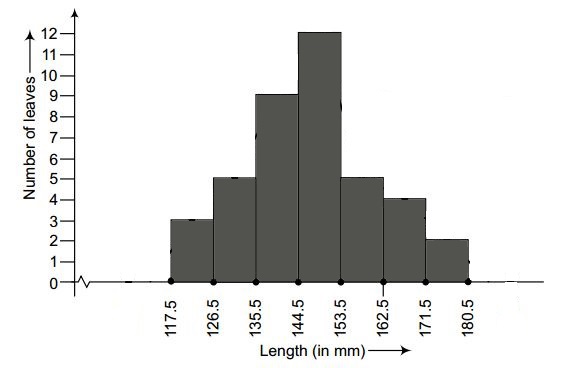

(i) Draw a histogram to represent the given data. [Hint: First, make the class intervals continuous.]

(ii) Is there any other suitable graphical representation for the same data?

(iii) Is it correct to conclude that the maximum number of leaves is 153 mm long? Why?

Show solutionHide solution

Worked solution

(i) The data given in the question is represented in the discontinuous class interval. So, we have to make it in the continuous class interval. The difference is 1, so taking half of 1, we subtract ½ = 0.5 from the lower limit and add 0.5 to the upper limit. Then, the table becomes

S.No.	Length (in mm)	Number of leaves
1.	117.5 – 126.5	3
2.	126.5 – 135.5	5
3.	135.5 – 144.5	9
4.	144.5 – 153.5	12
5.	153.5 – 162.5	5
6.	162.5 – 171.5	4
7.	171.5 – 180.5	2

(ii) Yes, the data given in the question can also be represented by a frequency polygon.

(iii) No, we cannot conclude that the maximum number of leaves is 153 mm long because the maximum number of leaves are lying in-between the length of 144.5 – 153.5

Q5Written answer

The following table gives the lifetimes of 400 neon lamps.

Life Time (in hours)	Number of Lamps
300 – 400	14
400 – 500	56
500 – 600	60
600 – 700	86
700 – 800	74
800 – 900	62
900 – 1000	48

(i) Represent the given information with the help of a histogram.

(ii) How many lamps have a lifetime of more than 700 hours?

Show solutionHide solution

Worked solution

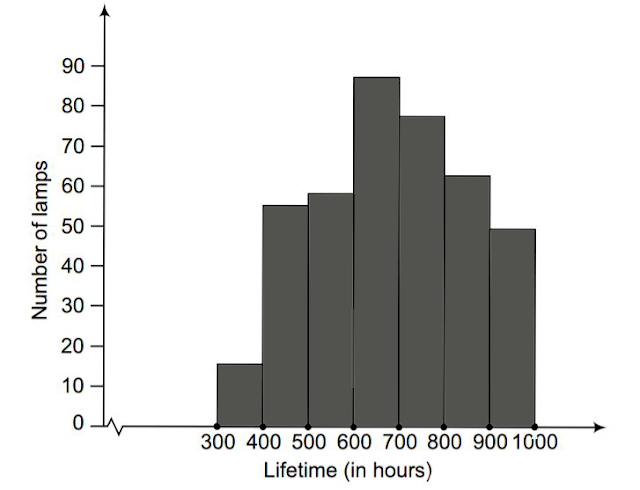

(i) The histogram representation of the given data is given below.

Ncert solutions class 9 chapter 14-6

(ii) The number of lamps having a lifetime of more than 700 hours = 74+62+48 = 184

Q6Written answer

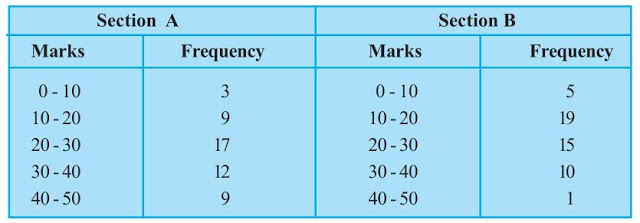

The following table gives the distribution of students in two sections according to the marks obtained by them.

Ncert solutions class 9 chapter 14-7

Represent the marks of the students of both sections on the same graph by two frequency polygons. From the two polygons, compare the performance of the two sections.

Show solutionHide solution

Worked solution

The class-marks = (lower limit + upper limit)/2

For section A,

Marks	Class-marks	Frequency
0-10	5	3
10-20	15	9
20-30	25	17
30-40	35	12
40-50	45	9

For section B,

Marks	Class-marks	Frequency
0-10	5	5
10-20	15	19
20-30	25	15
30-40	35	10
40-50	45	1

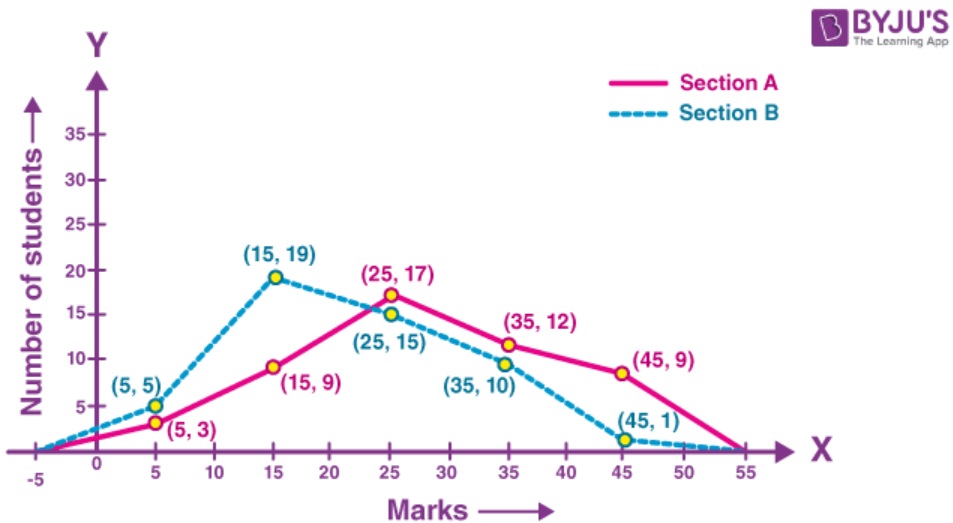

Representing these data on a graph using two frequency polygon, we get

Ncert solutions class 9 chapter 14-8

From the graph, we can conclude that the students of Section A performed better than Section B.

Q7Written answer

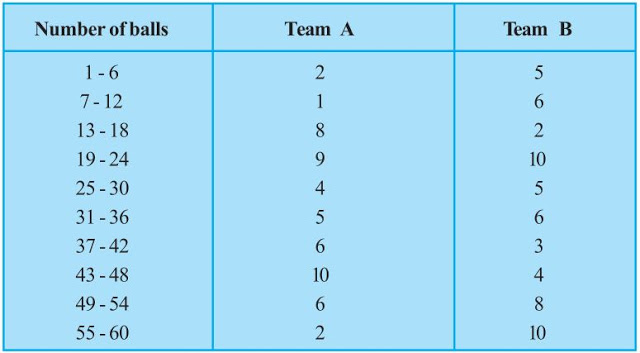

The runs scored by two teams, A and B, on the first 60 balls in a cricket match are given below.

Represent the data of both teams on the same graph by frequency polygons.

[Hint: First, make the class intervals continuous.]

Show solutionHide solution

Worked solution

The data given in the question is represented in the discontinuous class interval. So, we have to make it in the continuous class interval. The difference is 1, so taking half of 1, we subtract ½ = 0.5 = 0.5 from the lower limit and add 0.5 to the upper limit. Then, the table becomes

Number of Balls	Class Mark	Team A	Team B
0.5-6.5	3.5	2	5
6.5-12.5	9.5	1	6
12.5-18.5	15.5	8	2
18.5-24.5	21.5	9	10
24.5-30.5	27.5	4	5
30.5-36.5	33.5	5	6
36.5-42.5	39.5	6	3
42.5-48.5	45.5	10	4
48.5-54.5	51.5	6	8
54.5-60.5	57.5	2	10

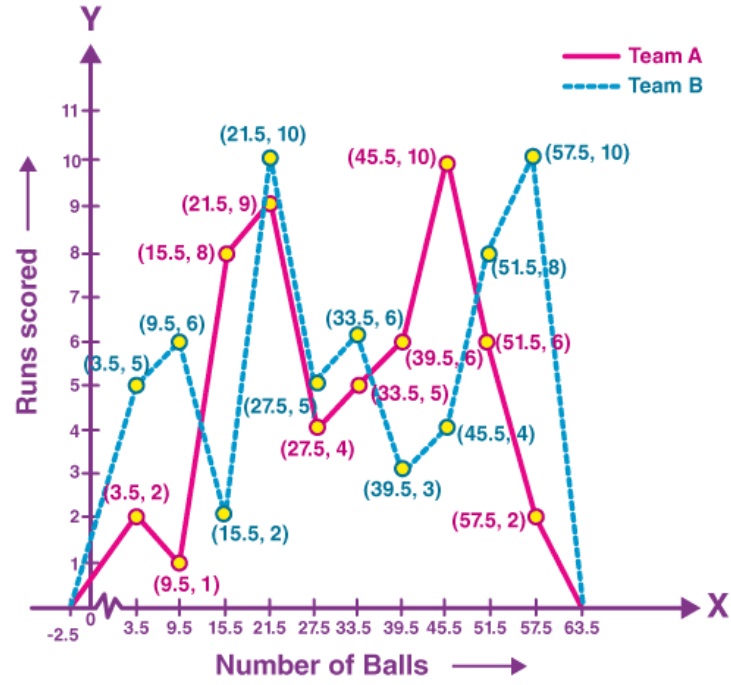

The data of both teams are represented on the graph below by frequency polygons.

Ncert solutions class 9 chapter 14-10

Q8Written answer

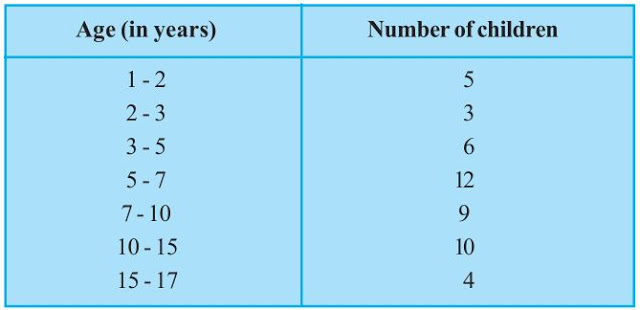

A random survey of the number of children of various age groups playing in a park was found as follows:

Ncert solutions class 9 chapter 14-11

Draw a histogram to represent the data above.

Show solutionHide solution

Worked solution

The width of the class intervals in the given data varies.

We know that,

The area of the rectangle is proportional to the frequencies in the histogram.

Thus, the proportion of children per year can be calculated as given in the table below.

Age (in years)	Number of children (frequency)	Width of class	Length of rectangle
1-2	5	1	(5/1)×1 = 5
2-3	3	1	(3/1)×1 = 3
3-5	6	2	(6/2)×1 = 3
5-7	12	2	(12/2)×1 = 6
7-10	9	3	(9/3)×1 = 3
10-15	10	5	(10/5)×1 = 2
15-17	4	2	(4/2)×1 = 2

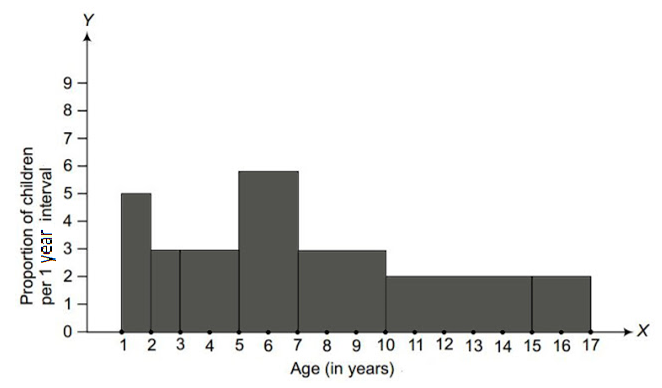

Let x-axis = the age of children

y-axis = proportion of children per 1-year interval

Ncert solutions class 9 chapter 14-12

Q9Written answer

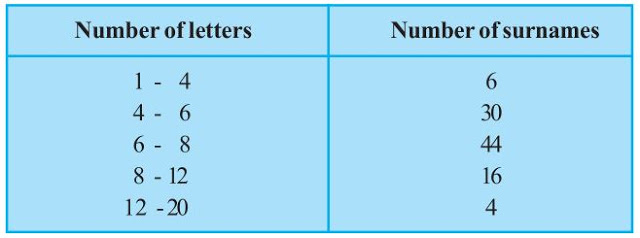

100 surnames were randomly picked up from a local telephone directory, and a frequency distribution of the number of letters in the English alphabet in the surnames was found as follows:

Ncert solutions class 9 chapter 14-13

(i) Draw a histogram to depict the given information.

(ii) Write the class interval in which the maximum number of surnames lie.

Show solutionHide solution

Worked solution

(i) The width of the class intervals in the given data is varying.

We know that,

The area of the rectangle is proportional to the frequencies in the histogram.

Thus, the proportion of the number of surnames per 2 letters interval can be calculated as given in the table below.

Number of letters	Number of surnames	Width of class	Length of rectangle
1-4	6	3	(6/3)×2 = 4
4-6	30	2	(30/2)×2 = 30
6-8	44	2	(44/2)×2 = 44
8-12	16	4	(16/4)×2 = 8
12-20	4	8	(4/8)×2 = 1

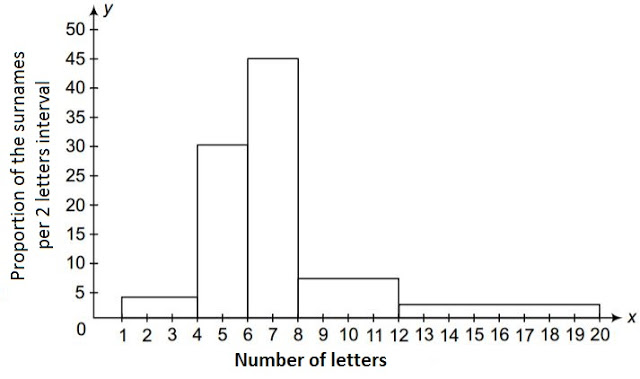

Ncert solutions class 9 chapter 14-14

(ii) 6-8 is the class interval in which the maximum number of surnames lie.
