Practice every matching question in batches of 20, with every available option.
Generative Approach of Computer Aided Process Planning is NOT based on (i) part coding using Group Technology (ii) part feature recognition and extraction (iii) database of standard process plans for part families (iv) geometric modelling of part

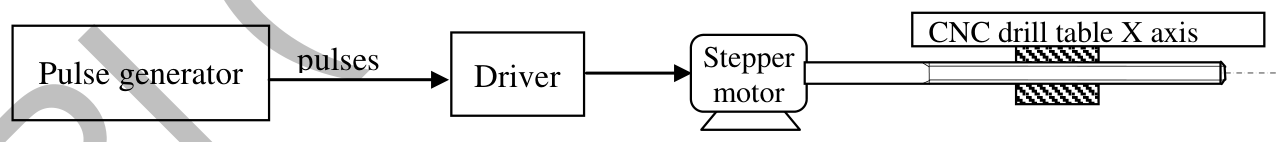

In an open loop, point-to-point controlled CNC drilling machine, a stepper motor, producing 200 angular steps per revolution, drives the table of a drilling machine by one angular step per each pulse generated by a pulse generator (shown in figure). Each angular step moves the table by one Basic Length Unit (BLU) along X axis with a lead screw having a pitch of 4 mm. If the frequency of pulse generator is doubled, the BLU will
A CNC instruction G91G01X30Y40F100 commands the movement of tool along the path at a feed rate of 100 mm/min (G91- incremental format and G01- linear interpolation). The feed rate of the tool (in mm/min) along the X axis will be ______

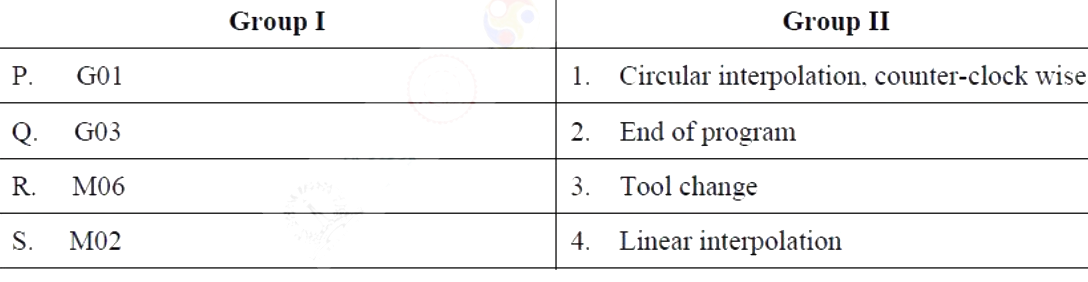

| Group I | Group II |
|---|---|
| P. G01 | 1. Circular interpolation, counter-clock wise |
| Q. G03 | 2. End of program |
| R. M06 | 3. Tool change |
| S. M02 | 4. Linear interpolation |
The movement along the z-axis of a CNC drilling machine is controlled by using a servo motor, a lead screw and an incremental encoder. The lead screw has 2 threads/cm and it is directly coupled to the servo motor. The incremental encoder attached to the lead screw emits 100 pulses/revolution. The control resolution in microns is ______.
A tool of an NC machine has to move along a circular arc from (20,20) to (10,10), while performing an operation. The center of the arc is at (20,10). Which one of the following NC tool commands performs the above mentioned operation?
