Applied Mechanics - General Engineering - Production & Industrial Engineering Previous Year Questions

1

2007 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2007

Matching Exercise. Choose the correct one out of the alternatives A,B,C,D.

A

P-3, Q-2, R-4, S-1

B

P-2, Q-4, R-3, S-1

C

P-1, Q-2, R-3, S-4

D

P-1, Q-3, R-2, S-4

Open complete paper

2

2007 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2007

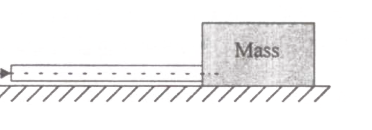

Figure below shows a mass of 300 kg being pushed using a cylindrical rod made of a material having \( E = 22 \) MPa and of 2 m length and 0.1 m in diameter. In order to avoid the failure of the rod due to elastic instability, the maximum value of the coefficient of Coulomb friction permissible between the mass and the floor is

A

0.22

B

0.36

C

0.65

D

0.75

Open complete paper

3

2007 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2007

Figure below shows a mass of 300 kg being pushed using a cylindrical rod made of a material having E = 22 MPa and of 2 m length and 0.1 m in diameter. In order to avoid the failure of the rod due to elastic instability, the maximum value of the coefficient of Coulomb friction permissible between the mass and the floor is

A

0.22

B

0.36

C

0.65

D

0.75

Check answer

Open complete paper

4

2008 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2008

The state of stress at a point in a body under plane state of stress condition is given by \(\begin{bmatrix} 60 & 0 \\ 0 & 20 \end{bmatrix}\) MPa. The maximum shear stress (in MPa) is

A

0

B

20

C

30

D

40

Open complete paper

5

2008 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2008

Which one of the following is a unary operation performed in relational data models?

A

Cartesian product

B

Set union

C

Set difference

D

Selection

Open complete paper

6

2008 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2008

A cantilever beam XY of length 2 m and cross-sectional dimensions 25 mm × 25 mm is fixed at X and is subjected to a moment of 100 N-m and an unknown force P at the free end Y as shown in the figure. The Young’s modulus of the material of the beam is 200 GPa.
If the deflection of the free end Y is zero, then the value of P (in N) is

A

67

B

75

C

133

D

150

Open complete paper

7

2008 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2008

A frame of square cross-section of (a × a) is as shown in the figure. The stress near the fixed end on the upper side of the frame is

A

58P / a²

B

59P / a²

C

60P / a²

D

61P / a²

Open complete paper

8

2008 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2008

A steel wire of diameter 2 mm is wound on a rigid drum of diameter 2 m. If the Young’s modulus of the steel is 200 GPa, the maximum stress (in MPa) in the steel wire is

A

50

B

100

C

200

D

400

Open complete paper

9

2009 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2009

A biaxial stress element is subjected to tensile and shear stresses as shown in the figure. If \(\sigma_x = 40\) MPa, \(\sigma_y = 20\) MPa and \(\tau_{xy} = \tau_{yx} = 15\) MPa,
The principal normal stresses (in MPa) are:

A

5 and 55

B

10 and 30

C

12 and 48

D

20 and 40

Open complete paper

10

2009 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2009

Match the following:

Group I	Group II
P. Relational DBMS	1. SQL
Q. Primary key	2. AND, OR
R. Retrieving data	3. Tables, columns and rows
S. Boolean search	4. Columns that uniquely identify a row

A

P-3, Q-4, R-2, S-1

B

P-3, Q-1, R-4, S-2

C

P-3, Q-4, R-1, S-2

D

P-4, Q-1, R-2, S-3

Open complete paper

11

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

A rigid massless link YZ of length 100 mm is connected at one end to another massless link XY of the same length by means of a frictionless hinge at Y and at the other end to a frictionless roller, as shown in the following figure. The link XY is connected to the wall by means of a frictionless hinge at point X. The roller is connected to a massless linear spring with a spring constant 10 kN/m. A point force of 100 N is applied at point Y as shown in the figure. At equilibrium, each of the links XY and YZ makes an angle θ = 30° with the horizontal. Under this situation, the stretch of the spring (in mm) is

A

5/√3

B

5/2√3

C

5√3

D

10√3

Open complete paper

12

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

A cantilever beam XY is made of a stepped circular shaft of diameters 100 mm and 50 mm, as shown in the following figure. The cantilever is subjected to two concentrated bending moments, one of 100 Nm at point Y and another of 200 Nm at point Z. The maximum bending stress (in MPa) experienced by the cantilever is

A

1.02

B

3.06

C

8.15

D

16.30

Open complete paper

13

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

Choose the most appropriate word from the options given below to complete the following sentence: His rather casual remarks on politics ______ his lack of seriousness about the subject.

A

masked

B

belied

C

betrayed

D

suppressed

Open complete paper

14

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

Which of the following options is the closest in meaning to the word below: Circuitous

A

cyclic

B

indirect

C

confusing

D

crooked

Open complete paper

15

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

The question below consists of a pair of related words followed by four pairs of words. Select the pair that best expresses the relation in the original pair. Unemployed : Worker

A

fallow : land

B

unaware : sleeper

C

wit : jester

D

renovated : house

Open complete paper

16

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

Choose the most appropriate word from the options given below to complete the following sentence:
His rather casual remarks on politics ________ his lack of seriousness about the subject.

A

masked

B

belied

C

betrayed

D

suppressed

Open complete paper

17

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

Which of the following options is the closest in meaning to the word below:
Circuitous

A

cyclic

B

indirect

C

confusing

D

crooked

Open complete paper

18

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

The question below consists of a pair of related words followed by four pairs of words. Select the pair that best expresses the relation in the original pair.
Unemployed : Worker

A

fallow : land

B

unaware : sleeper

C

wit : jester

D

renovated : house

Open complete paper

19

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

If 137 + 276 = 435 how much is 731 + 672?

A

534

B

1403

C

1623

D

1513

Open complete paper

20

2010 · Production & Industrial Engineering · General Engineering · Applied Mechanics

Production & Industrial Engineering (PI) 2010

Hari (H), Gita (G), Irfan (I) and Saira (S) are siblings (i.e. brothers and sisters). All were born on 1st January. The age difference between any two successive siblings (that is born one after another) is less than 3 years. Given the following facts:
i. Hari's age + Gita's age > Irfan's age + Saira's age.
ii. The age difference between Gita and Saira is 1 year. However, Gita is not the oldest and Saira is not the youngest.
iii. There are no twins.
In what order were they born (oldest first)?

A

HSIG

B

SGHI

C

IGSH

D

IHSG

Open complete paper
