Calculus and Vector Analysis - Engineering Mathematics - Naval Architecture & Marine Engineering Previous Year Questions

1

2022 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2022

If \(\frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos nx\) is the Fourier cosine series of the function \(f(x) = \sin x, \quad 0 < x < \pi,\) then which of the following are TRUE?

A

\(a_0 + a_1 = 4/\pi\)

B

\(a_0 = 4/\pi\)

C

\(a_0 + a_1 = 2/\pi\)

D

\(a_1 = 2/\pi\)

Check answer

Open complete paper

2

2022 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2022

Let \( f(x, y, z) = xy + yz + xz \). If a point \( (0, 0, \lambda) \) lies on the tangent plane to the surface \( f(x, y, z) = 3 \) at the point \( (1, 1, 1) \), then the value of \( \lambda \) is ________.

Check answer

Open complete paper

3

2022 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2022

The value of the line integral \(\oint_C -3y\,dx + 3x\,dy + z\,dz\) along the circle \(C: x^2 + y^2 = 1, z = 1\) oriented in the clockwise sense as seen from the origin, is

A

2π

B

4π

C

6π

D

8π

Open complete paper

4

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

References : ________ : : Guidelines : Implement
(By word meaning)

A

Sight

B

Site

C

Cite

D

Plagiarise

Open complete paper

5

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

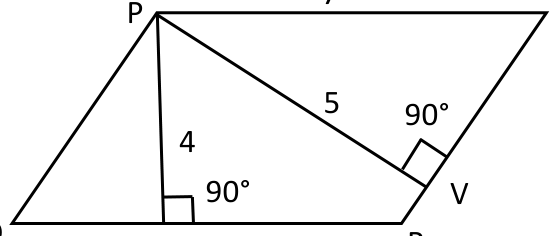

In the given figure, PQRS is a parallelogram with PS = 7 cm, PT = 4 cm and PV = 5 cm. What is the length of RS in cm? (The diagram is representative.)

A

\(\frac{20}{7}\)

B

\(\frac{28}{5}\)

C

\(\frac{9}{2}\)

D

\(\frac{35}{4}\)

Open complete paper

6

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

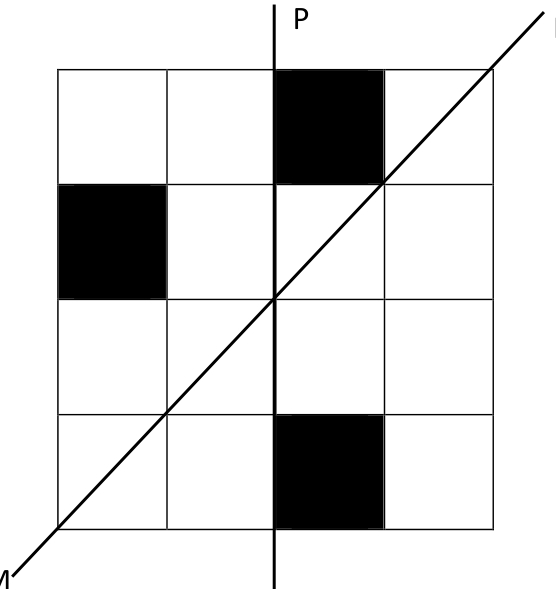

A line of symmetry is defined as a line that divides a figure into two parts in a way such that each part is a mirror image of the other part about that line.
The given figure consists of 16 unit squares arranged as shown. In addition to the three black squares, what is the minimum number of squares that must be coloured black, such that both PQ and MN form lines of symmetry? (The figure is representative)

A

3

B

4

C

5

D

6

Check answer

Open complete paper

7

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

The coefficient of \( x^4 \) in the polynomial \( (x - 1)^3 (x - 2)^3 \) is equal to _____.

A

33

B

-3

C

30

D

21

Check answer

Open complete paper

8

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

Consider the function \( z = \tan^{-1}\left(\frac{x}{y}\right) \), where \( x = u \sin v \) and \( y = u \cos v \). The partial derivative, \( \frac{\partial z}{\partial v} \) is

A

0

B

1

C

2

D

3

Check answer

Open complete paper

9

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

Consider the function \( z = x^3 - 2x^2 y + xy^2 + 1 \). The directional derivative of \( z \) at the point \( (1, 2) \) along the direction \( 3\hat{i} + 4\hat{j} \) is

A

0

B

-1

C

1

D

-2

Check answer

Open complete paper

10

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

In dimensional analysis, according to Buckingham’s \(\pi\)-theorem, if \(n\) is the total number of variables and \(m\) is the number of independent dimensions, then the maximum number of independent dimensionless \(\pi\)-groups will be

A

\(m - n\)

B

\(mn\)

C

\(m + n\)

D

\(n - m\)

Check answer

Open complete paper

11

2023 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2023

The value of the surface integral \(\iint (x^2 dy dz + y^2 dz dx + z^2 dx dy)\) over the surface of the cube given by \(0 \le x \le 2, 0 \le y \le 2, 0 \le z \le 2\), is

A

12

B

24

C

36

D

48

Check answer

Open complete paper

12

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

The tangent plane to the surface \( x^2 + y^2 + z = 9 \) at the point (1, 2, 4) is

A

\(2x + 4y + z = 14 \)

B

\(4x + 2y + z = 12 \)

C

\(x + 4y + 2z = 17 \)

D

\(4x + y + 2z = 14 \)

Open complete paper

13

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

The value of the line integral \(\oint x^2 \, dx + 2x \, dy\) along the ellipse \(4x^2 + y^2 = 4\) oriented in the counterclockwise sense is

A

\(\pi\)

B

\(2\pi\)

C

\(4\pi\)

D

\(8\pi\)

Open complete paper

14

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

The arc length of the one arch of the cycloid given by \( x = t - \sin t \) and \( y = 1 - \cos t \) is ________.

Check answer

Open complete paper

15

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

Consider the function \(f(x, y) = x^4 + y^4 - 4xy + 1\). Which of the following is/are correct?

A

The minimum value of \(f\) occurs at \((0, 0)\)

B

The point \((0, 0)\) is a point of inflection

C

\(f\) has three critical points

D

The minimum value of \(f\) is \(-1\)

Check answer

Open complete paper

16

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

Consider the \(2\pi\) – periodic function defined by
\(f(x) = \begin{cases} -1 & \text{if } -\pi < x \le 0 \\ 1 & \text{if } 0 < x < \pi \end{cases}\)
Which of the following is/are correct about its Fourier series expansion, \(\frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos nx + b_n \sin nx\)?

A

\(a_n = \frac{1}{n} \ \forall n = 1, 2, ...\)

B

\(a_0 = 0\)

C

\(b_n = \frac{4}{n\pi}\) if n is odd

D

\(b_n = -\frac{4}{n\pi}\) if n is even

Check answer

Open complete paper

17

2024 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2024

The value of the triple integral \(\iiint (xy^2 + yz^3) \, dx \, dy \, dz\) over the region given by \(-1 \le x \le 1\), \(3 \le y \le 4\), \(0 \le z \le 2\), is ______.

Check answer

Open complete paper

18

2025 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2025

The value of \(\lim_{t\to 1} \frac{\ln t}{t^2-1}\) is ______.

A

\(\frac{1}{2}\)

B

0

C

1

D

\(\infty\)

Open complete paper

19

2025 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2025

The Fourier series expansion of \(f(x) = \sin^2 x\) in the interval \((-\pi, \pi)\) is ______.

A

\(f(x) = \frac{1}{2} - \frac{1}{2}\cos 2x\)

B

\(f(x) = \sum_{n=1}^{\infty} \frac{(-1)^{n-1} \cos nx}{n^2}\)

C

\(f(x) = 2 \sum_{n=1}^{\infty} \frac{\sin 2nx}{n}\)

D

\(f(x) = \frac{1}{2} - \frac{4}{\pi^2} \sum_{n=1}^{\infty} \frac{\cos(2n-1)\pi x}{(2n-1)^2}\)

Open complete paper

20

2025 · Naval Architecture & Marine Engineering · Engineering Mathematics · Calculus and Vector Analysis

Naval Architecture & Marine Engineering (NM) 2025

The value of \( \int_1^3 dy \int_2^5 x^2 y \, dx \) is __________ (answer in integer).

Check answer

Open complete paper
