Practice Computer Aided Manufacturing and Automation - Materials, Manufacturing and Industrial Engineering - Mechanical Engineering previous year questions organised from real papers, with year-wise coverage and clear topic navigation.
Every graph below is calculated only from this selection.
Year-wise coverage for Computer Aided Manufacturing and Automation. Each bar uses a separate theme-derived color.
How the classified questions are distributed by difficulty.
MCQ, numerical, multiple-select and other formats found in these papers.
Top subjects by unique question coverage.
Top topics across the included previous year papers.
Top subtopics inside this exact selection.
Question coverage for the most populated papers. Every active PYP paper remains listed below.
Newest papers appear first. Sort by year, question coverage or name.
| Paper | Year / session | Questions in this view | Open |
|---|---|---|---|
| Mechanical Engineering (ME) 2026 | 2026 | 1 | View paper |
| Mechanical Engineering (ME) 2025 | 2025 | 1 | View paper |
| Mechanical Engineering (ME) 2024 | 2024 | 1 | View paper |
| Mechanical Engineering (ME) 2023 | 2023 | 1 | View paper |
| Mechanical Engineering (ME) 2021 [Session 1] | 2021 | 1 | View paper |
| Mechanical Engineering (ME) 2020 [Session 2] | 2020 | 1 | View paper |
| Mechanical Engineering (ME) 2018 [Session 1] | 2018 | 1 | View paper |
| Mechanical Engineering (ME) 2016 [Session 3] | 2016 | 1 | View paper |
| Mechanical Engineering (ME) 2014 [Session 1] | 2014 | 1 | View paper |
| Mechanical Engineering (ME) 2014 [Session 2] | 2014 | 1 | View paper |
| Mechanical Engineering (ME) 2010 | 2010 | 1 | View paper |
| Mechanical Engineering (ME) 2009 | 2009 | 2 | View paper |
| Mechanical Engineering (ME) 2008 | 2008 | 1 | View paper |
| Mechanical Engineering (ME) 2007 | 2007 | 1 | View paper |
Practice every matching question in batches of 20, with every available option.
A customer insists on a modification to change the BLU of the CNC drive to 10 microns without changing the table speed. The modification can be accomplished by
| NC Code | Definition |
|---|---|
| P. M05 | 1. Absolute coordinate system |
| Q. G01 | 2. Dwell |
| R. G04 | 3. Spindle stop |
| S. G90 | 4. Linear interpolation |
| Group A | Group B |
|---|---|
| P: circular interpolation, counter clock wise | I: G02 |
| Q: dwell | II: G03 |
| R: circular interpolation, clock wise | III: G04 |
| S: point to point countering | IV: G00 |

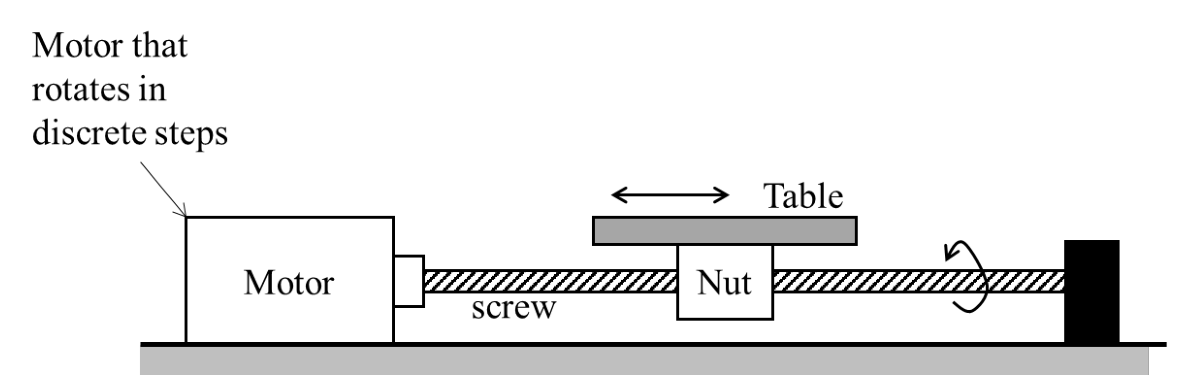

A CNC machine has one of its linear positioning axes as shown in the figure, consisting of a motor rotating a lead screw, which in turn moves a nut horizontally on which a table is mounted. The motor moves in discrete rotational steps of 50 steps per revolution. The pitch of the screw is 5 mm and the total horizontal traverse length of the table is 100 mm. What is the total number of controllable locations at which the table can be positioned on this axis?
The preparatory functions in Computer Numerical Controlled (CNC) machine programing are denoted by the alphabet

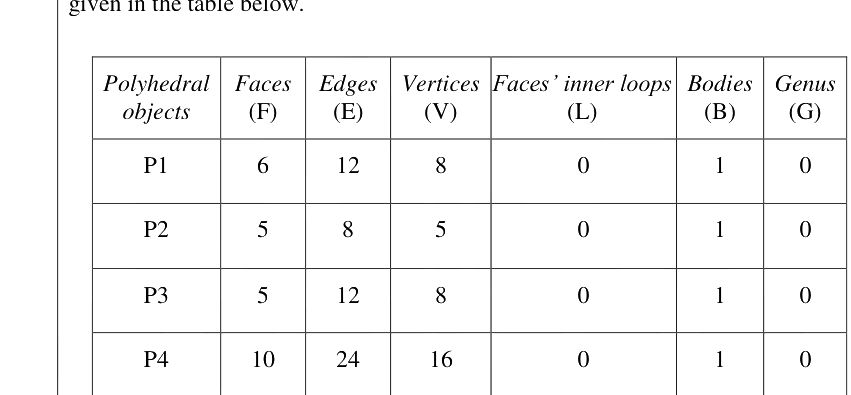

| Polyhedral objects | Faces (F) | Edges (E) | Vertices (V) | Faces’ inner loops (L) | Bodies (B) | Genus (G) |
|---|---|---|---|---|---|---|
| P1 | 6 | 12 | 8 | 0 | 1 | 0 |
| P2 | 5 | 8 | 5 | 0 | 1 | 0 |
| P3 | 5 | 12 | 8 | 0 | 1 | 0 |
| P4 | 10 | 24 | 16 | 0 | 1 | 0 |
