Consider a soap film bubble of diameter \(D\). If the external pressure is \(P_o\) and the surface tension of the soap film is \(\sigma\), the expression for the pressure inside the bubble is

A

\(P_o\)

B

\(P_o + \frac{2\sigma}{D}\)

C

\(P_o + \frac{4\sigma}{D}\)

D

\(P_o + \frac{8\sigma}{D}\)

Open complete paper

2

2007 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2007

A pipeline system carries crude oil of density 800 kg/m³. The volumetric flow rate at point 1 is 0.28 m³/s. The cross sectional areas of the branches 1,2 and 3 are 0.012, 0.008 and 0.004 m² respectively. All the three branches are in a horizontal plane and the friction is negligible. If the pressures at the points 1 and 3 are 270 kPa and 240 kPa respectively, then the pressure at point 2 is

A

202 kPa

B

240 kPa

C

284 kPa

D

355 kPa

Open complete paper

3

2007 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2007

The figure shows the idealized view of a return elbow or U bend, which is connected to two pipes by flexible hoses that transmit no force. Water with density 1000 kg/m³ flows at velocity of 10 m/s through the pipe, which has a uniform ID of 0.1m. The gauge pressure at points 1 and 2 are 304 kPa and 253 kPa respectively. The horizontal force F required to keep the elbow in position is

A

1574 N

B

1970 N

C

5942 N

D

7533 N

Open complete paper

4

2007 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2007

A tube of diameter D and length L is initially filled with a liquid of density ρ and viscosity μ. It is then pushed out by the application of a constant force F to the plunger as shown in the figure. Assuming laminar flow and pseudo steady state, the time required to expel one half of the liquid out of the tube is

A

\(\frac{3\pi\mu L^2}{F}\)

B

\(\frac{3\pi\mu D^2}{F}\)

C

\(\frac{6\pi\mu L^2}{F}\)

D

\(\frac{6\pi\mu D L}{F}\)

Open complete paper

5

2008 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2008

Q.9 Three containers are filled with water up to the same height as shown. The pressures at the bottom of the containers are denoted as P1, P2 and P3. Which ONE of the following relationships is true?

A

\(P_3 > P_1 > P_2 \)

B

\(P_2 > P_1 > P_3 \)

C

\(P_1 > P_2 = P_3 \)

D

\(P_1 = P_2 = P_3 \)

Open complete paper

6

2008 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2008

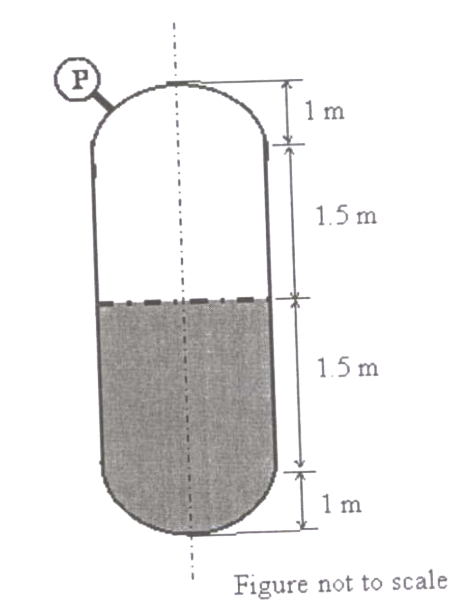

A cylindrical vessel with hemispherical ends is filled with water as shown in the figure. The head space is pressurized to a gauge pressure of 40 kN/m\(^2\). The vertical force F (in kN) tending to lift the top dome and the absolute pressure P (in kN/m\(^2\)) at the bottom of the vessel are (g = 9.8 m/s\(^2\), density of water = 1000 kg/m\(^3\))

A

F = 83.6 ; P = 64.5

B

F = 83.6 ; P = 165.8

C

F = 125.7 ; P = 64.5

D

F = 125.7 ; P = 165.8

Open complete paper

7

2008 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2008

A pump draws oil (specific gravity 0.8) from a storage tank and discharges it to an overhead tank. The mechanical energy delivered by the pump to the fluid is 50 J/kg. The velocities at the suction and the discharge points of the pump are 1 m/s and 7 m/s, respectively. Neglecting friction losses and assuming kinetic energy correction factor to be unity, the pressure developed by the pump (in kN/m\(^2\)) is

A

19.2

B

20.8

C

40

D

80

Open complete paper

8

2008 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2008

A steady flow field of an incompressible fluid is given by \(\vec{V}=(Ax+By)\hat{i}-Ay\hat{j}\), where A = 1 s⁻¹, B = 1 s⁻¹, and x, y are in meters. The magnitude of the acceleration (in m/s²) of a fluid particle at (1, 2) is

A

1

B

√2

C

√5

D

√10

Open complete paper

9

2008 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2008

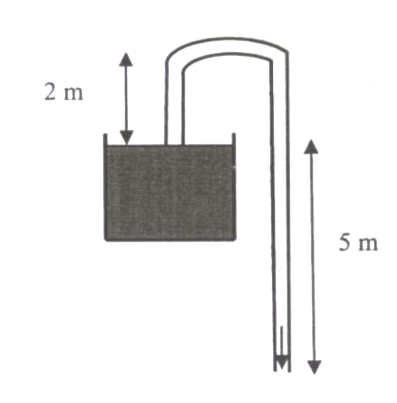

The velocity (in m/s) at the discharge point is

A

9.9

B

11.7

C

98

D

136.9

Open complete paper

10

2009 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2009

For an incompressible flow, the \(x\)- and \(y\)- components of the velocity vector are \(v_x = 2(x + y)\); \(v_y = 3(y + z)\) where \(x, y, z\) are in metres and velocities are in m/s. Then the \(z\)-component of the velocity vector (\(v_z\)) of the flow for the boundary condition \(v_z = 0\) at \(z = 0\) is

A

\(5z\)

B

\(-5z\)

C

\(2x + 3z\)

D

\(-2x - 3z\)

Open complete paper

11

2009 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2009

The velocity of water at the tip of the nozzle (in m/s) is

A

13.4

B

18.0

C

23.2

D

27.1

Open complete paper

12

2009 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2009

The gauge pressure (in kPa) at point B is

A

80.0

B

100.0

C

239.3

D

367.6

Open complete paper

13

2010 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2010

The stream function in a x-y plane is given below: \( \psi = \frac{1}{2} x^2 y^3 \) The velocity vector for this stream function is

A

\(x y^3 \hat{i} - \frac{3}{2} x^2 y^2 \hat{j} \)

B

\(\frac{3}{2} x^2 y^2 \hat{i} - x y^3 \hat{j} \)

C

\(\frac{3}{2} x^2 y^2 \hat{i} + x y^3 \hat{j} \)

D

\(x y^3 \hat{i} + \frac{3}{2} x^2 y^2 \hat{j} \)

Open complete paper

14

2010 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2010

The height of a fluidized bed at incipient fluidization is 0.075 m, and the corresponding voidage is 0.38. If the voidage of the bed increases to 0.5, then the height of the bed would be

A

0.058 m

B

0.061 m

C

0.075 m

D

0.093 m

Open complete paper

15

2010 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2010

A hydrometer, with stem cross-sectional area of \( 2.82 \times 10^{-5} \text{ m}^2 \), is immersed in a very large vessel containing water as shown in the figure. The immersed volume is \( 15 \times 10^{-6} \text{ m}^3 \) and the length of the stem above water surface is \( L_w \). If the entire volume of water is replaced by a liquid with specific gravity 1.5 and if the length of the stem above the liquid surface is \( L_l \), then the difference, \( L_l - L_w \), is

A

-177 mm

B

177 mm

C

-266 mm

D

266 mm

Open complete paper

16

2011 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2011

In a thin-walled cylindrical vessel of thickness \(t\) with inside radius \(r\), the internal gauge pressure is \(p\). The hoop stress and the longitudinal stress in the shell are \(\sigma_h\) and \(\sigma_l\) respectively. Which ONE of the following statements is TRUE?

A

\(\sigma_h = \frac{pr}{t}, \sigma_l = \frac{pr}{4t}\)

B

\(\sigma_h = \frac{pr}{4t}, \sigma_l = \frac{pr}{t}\)

C

\(\sigma_h = \frac{pr}{2t}, \sigma_l = \frac{pr}{t}\)

D

\(\sigma_h = \frac{pr}{t}, \sigma_l = \frac{pr}{2t}\)

Open complete paper

17

2011 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2011

Two liquids (P and Q) having same viscosity are flowing through a double pipe heat exchanger as shown in the schematic below. Densities of P and Q are 1000 and 800 kg/m\(^3\) respectively. The average velocities of the liquids P and Q are 1 and 2.5 m/s respectively. The inner diameters of the pipes are 0.31 and 0.1 m. Both pipes are 5 mm thick. The ratio of the Reynolds numbers \( Re_P \) to \( Re_Q \) is

A

2.5

B

1.55

C

1

D

4

Open complete paper

18

2012 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2012

A Newtonian fluid of viscosity \(\mu\) flows between two parallel plates due to the motion of the bottom plate (as shown below), which is moved with a velocity \(V\). The top plate is stationary. The steady, laminar velocity profile in the \(x\)-direction is

A

\(V \left[ \frac{y}{b} \right]\)

B

\(V \left[ \left( \frac{y}{b} \right)^2 - 1 \right]\)

C

\(V \left[ 1 - \left( \frac{y}{b} \right)^2 \right]\)

D

\(V \left[ 1 - \frac{y}{b} \right]\)

Open complete paper

19

2012 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2012

The force per unit area (in the \(x\)-direction) that must be exerted on the bottom plate to maintain the flow is

A

\(\mu V / b\)

B

\(-\mu V / b\)

C

\(2 \mu V / b\)

D

\(-2 \mu V / b\)

Open complete paper

20

2013 · Chemical Engineering · Fluid Mechanics and Mechanical Operations · Fluid Statics and Conservation Equations

Chemical Engineering (CH) 2013

An open tank contains two immiscible liquids of densities (800 kg/m³ and 1000 kg/m³) as shown in the figure. If g = 10 m/s², under static conditions, the gauge pressure at the bottom of the tank in Pa is __________

Check answer
