Construction Planning and Scheduling - Project Management and Professional Practice - Architecture and Planning Previous Year Questions

1

2007 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2007

For a PERT activity, the optimistic time, most likely time and pessimistic time are 1, 2 and 9 days respectively. The expected time for the activity (in days) is

A

9

B

6

C

4

D

3

Open complete paper

2

2007 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2007

The normal project time for the given network is

A

11

B

12

C

13

D

14

Open complete paper

3

2007 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2007

For the all-normal solution, the total float and free float for the activity S are

A

1, 1

B

0, 3

C

3, 3

D

3, 0

Open complete paper

4

2007 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2007

While crashing the project, the first step of compression would involve the activity

A

R

B

U

C

T

D

V

Open complete paper

5

2009 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2009

The essential difference between CPM and PERT is

A

Critical Path vs. Critical Activity

B

Arrow notation vs. Precedence notation

C

Deterministic approach vs. Probabilistic approach

D

Project Management vs. Network Analysis

Open complete paper

6

2009 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2009

The normal project duration (in days) is

Check answer

Open complete paper

7

2009 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2009

The critical activities of the project are

A

P, Q, R, V

B

P, R, S, U

C

P, Q, T, V

D

P, S, U, V

Open complete paper

8

2010 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2010

Following figure shows network for a particular project consisting of four activities.
Normal duration and crash time for each activity are given below.

Activity	Normal duration (in days)	Crash time (in days)
1 - 2	3	2
2 - 3	4	2
2 - 4	5	4
3 - 4	7	5

The minimum time required for completion of project is

A

9 days

B

13 days

C

14 days

D

19 days

Open complete paper

9

2010 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2010

5 skilled workers can build a wall in 20 days; 8 semi-skilled workers can build a wall in 25 days; 10 unskilled workers can build a wall in 30 days. If a team has 2 skilled, 6 semi-skilled and 5 unskilled workers, how long will it take to build the wall?

A

20 days

B

18 days

C

16 days

D

15 days

Open complete paper

10

2011 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2011

In a construction project schedule, A is the first activity. Activities B & C follow A. Activity D follows B & C. Activity E follows C. Activity F follows D & E.

Activity	A	B	C	D	E	F
Duration (in days)	3	2	5	6	5	3

The critical time to complete the project will be

A

14 days

B

16 days

C

17 days

D

20 days

Open complete paper

11

2011 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2011

A transponder receives the same number of orders each day. Currently, he has some pending orders (backlog) to be shipped. If he uses 7 trucks, then at the end of the 4th day he can clear all the orders. Alternatively, if he uses only 3 trucks, then all the orders are cleared at the end of the 10th day. What is the minimum number of trucks required so that there will be no pending order at the end of the 5th day?

A

4

B

5

C

6

D

7

Open complete paper

12

2013 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2013

Gantt Chart DOES NOT provide information about

A

List of Jobs

B

Duration of Jobs

C

Interdependency of Jobs

D

Progress of Work

Open complete paper

13

2013 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2013

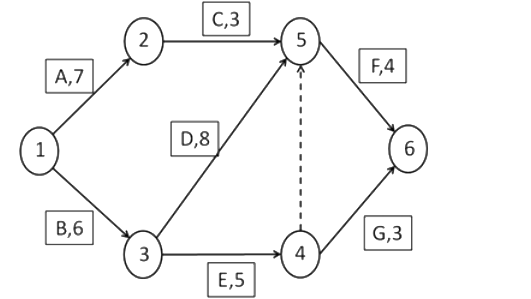

In the given project network diagram, the total slack for job A in days would be ______.

Check answer

Open complete paper

14

2014 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2014

The optimistic time, the pessimistic time and the most likely time of a job are 6, 13 and 8 days respectively. The variance for this job is ______

Check answer

Open complete paper

15

2015 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2015

Which of the following statements regarding PERT is NOT true?

A

Each activity of PERT network has three different time estimates

B

Expected activity time is estimated based on β-distribution

C

PERT is a deterministic model

D

PERT network may have more than one critical path

Open complete paper

16

2016 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2016

A CPM network of a construction project is given in the figure below. The activity durations are mentioned in weeks. The project completion time in weeks will be ____________________

Check answer

Open complete paper

17

2017 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2017

The optimistic, most-likely and pessimistic time for developing a new product are 12 months, 15 months and 17 months, respectively. Calculate the expected time in months.

Check answer

Open complete paper

18

2018 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2018

In Critical Path Method (CPM) for time scheduling, ‘forward pass calculation’ is carried out for determining

A

Late start and early finish time

B

Early start and early finish time

C

Late start and late finish time

D

Early start and late finish time

Open complete paper

19

2018 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2018

For an activity, ‘optimistic time duration’ is 4 days, ‘pessimistic time duration’ is 11 days and ‘most-likely time duration’ is 8 days. The PERT value of time duration is __________ days (up to one decimal place).

Check answer

Open complete paper

20

2019 · Architecture and Planning · Project Management and Professional Practice · Construction Planning and Scheduling

Architecture and Planning (AR) 2019

A power shovel is having 1.8 m³ excavation output per batch of operation. The average cycle time of the batch operation is 45 seconds. The lost time per hour of the excavation activity is 10 minutes. Assume six working hours of operation per day. The amount of soil excavated by the power shovel per day is ______ m³ (rounded off to two decimal places).

Check answer

Open complete paper
