Geometry - General Aptitude - General Aptitude (GA) Previous Year Questions

1

2015 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2015 [Session 1]

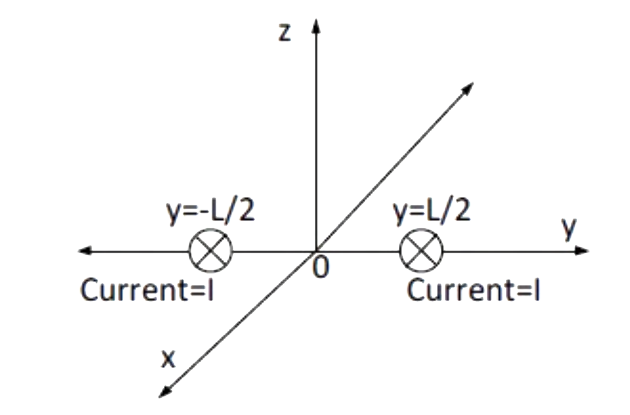

A steady current \(I\) is flowing in the \(-x\) direction through each of two infinitely long wires at \(y = \pm \frac{L}{2}\) as shown in the figure. The permeability of the medium is \(\mu_0\). The \(\vec{B}\)-field at \((0,L,0)\) is

A

\(-\frac{4\mu_0 I}{3\pi L} \hat{z}\)

B

\(+\frac{4\mu_0 I}{3\pi L} \hat{z}\)

C

0

D

\(-\frac{3\mu_0 I}{4\pi L} \hat{z}\)

Open complete paper

2

2015 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2015 [Session 2]

Two semi-infinite conducting sheets are placed at right angles to each other as shown in the figure. A point charge of \(+Q\) is placed at a distance of \(d\) from both sheets. The net force on the charge is \(\frac{Q^2}{4\pi\epsilon_0} \frac{K}{d^2}\), where \(K\) is given by

A

\(0\)

B

\(-\frac{1}{4} \hat{i} - \frac{1}{4} \hat{j}\)

C

\(-\frac{1}{8} \hat{i} - \frac{1}{8} \hat{j}\)

D

\(\frac{1-2\sqrt{2}}{8\sqrt{2}} \hat{i} + \frac{1-2\sqrt{2}}{8\sqrt{2}} \hat{j}\)

Open complete paper

3

2016 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2016 [Session 1]

In a 2 × 4 rectangle grid shown below, each cell is a rectangle. How many rectangles can be observed in the grid?

A

21

B

27

C

30

D

36

Open complete paper

4

2016 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2016 [Session 1]

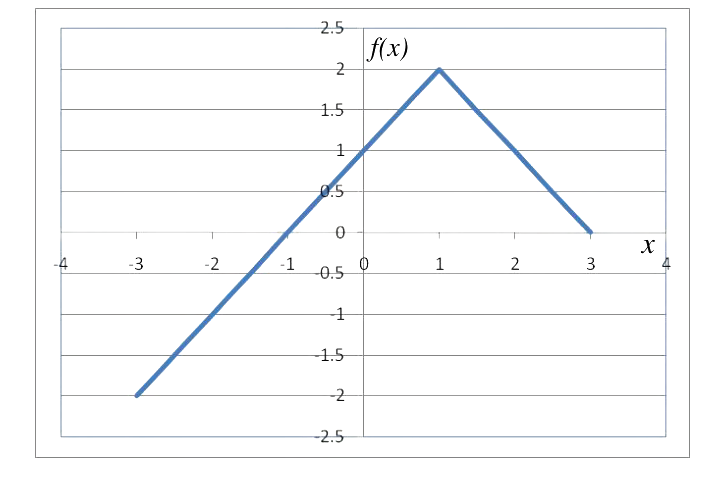

Choose the correct expression for \(f(x)\) given in the graph.

A

\(f(x) = 1 - |x - 1|\)

B

\(f(x) = 1 + |x - 1|\)

C

\(f(x) = 2 - |x - 1|\)

D

\(f(x) = 2 + |x - 1|\)

Open complete paper

5

2023 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2023

How many triangles are present in the given figure?

A

12

B

16

C

20

D

24

Open complete paper

6

2023 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2023

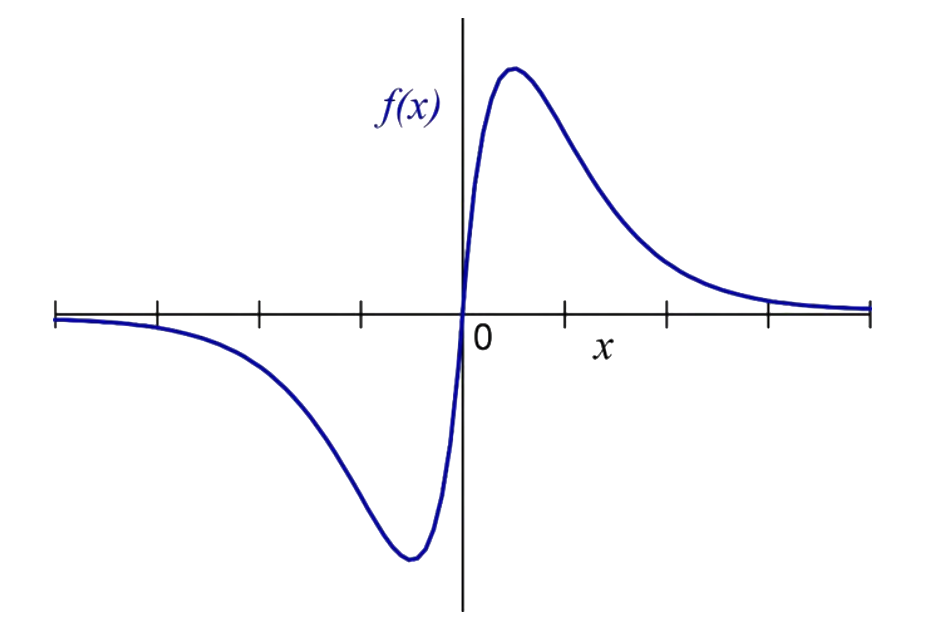

Which one of the following options represents the given graph?

A

\(f(x) = x^2 2^{-|x|} \)

B

\(f(x) = x 2^{-|x|} \)

C

\(f(x) = |x| 2^{-x} \)

D

\(f(x) = x 2^{-x} \)

Open complete paper

7

2025 · General Aptitude (GA) · General Aptitude · Geometry

Electrical Engineering (EE) 2025

The relationship between two variables \(x\) and \(y\) is given by \(x + py + q = 0\) and is shown in the figure. Find the values of \(p\) and \(q\).
Note: The figure shown is representative.

A

\(p = -\frac{1}{2}; q = 2\)

B

\(p = 2; q = -2\)

C

\(p = \frac{1}{2}; q = 4\)

D

\(p = 2; q = 4\)

Open complete paper
